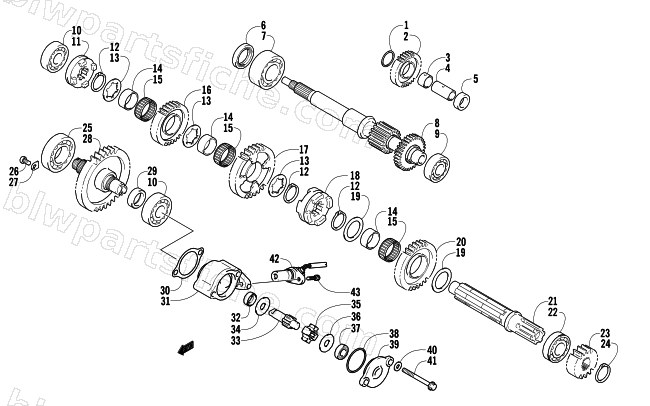

SECONDARY TRANSMISSION ASSEMBLY

2006 400 AUTOMATIC TRANSMISSION 4X4 FIS

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3402-195	SHIM,20MM	1	$4.95
2	3402-503	GEAR,REVERSE IDLE	1	$135.95
3	3446-103	BUSH, SUB T/M DRIVE, NO, 2	1	$48.95
4	3402-634	SHAFT, REVERSE IDLE	1	$37.95
5	3423-442	SPACER, 20 X 30 X 9.5	1	$20.63
6	3402-537	SEAL, DRIVE SHAFT (M30X44X7)	1	$33.95
7	3402-499	BEARING, DRIVE SHAFT RH (M30X62X23.8)	1	$174.95
8	3402-665	SHAFT, DRIVE	1	$445.95
9	3003-261	BEARING, CRANKSHAFT LH,M20X47X14	1	$34.95
10	3402-045	BALL BEARING,M20X52X15	1	$66.95
11	3402-636	DOG, REVERSE GR SELECT SLIDING	1	$114.95
12	3423-066	CIRCLIP,M25	1	$6.47
13	3423-263	WASHER,LOCK,25MM	1	$4.54
14	3402-494	BUSHING, SUB T/M DRIVEN	1	$50.95
15	3402-498	BEARING, SUB T/M & REV GEAR (M30X35X12)	1	$64.95
16	3402-635	GEAR, REVERSE DRIVEN	1	$164.95
17	3402-668	GEAR, SUB T/M DRIVEN LOW	1	$220.95
18	3402-496	DOG, SLIDING	1	$118.95
19	3423-448	SHIM, 25 X 40 X 1.0	1	$10.97
20	3402-495	GEAR, SUB T/M DRIVEN HI (NT:33)	1	$205.95
21	3402-667	SHAFT, SUB T/M COUNTER	1	$205.95
22	3004-209	BEARING, BALANCER SHAFT-LH,BALL,M25X52X1	1	$42.95
23	3402-669	GEAR, SUB T/M DRIVE NO.2	1	$122.95
24	3423-191	CIRCLIP,FASTENER	1	$2.33
25	3402-055	BALL BEARING ,M35X72X17	1	$112.95
26	3423-370	SCREW,6MM	1	$2.61
27	3446-031	RETAINER, BEARING	1	$5.78
28	3402-666	SHAFT, SUB T/M OUTPUT	1	$387.95
29	3423-494	SPACER, SUB T/M NO.2 GEAR	1	$26.95
30	3446-244	GASKET,ODOMETER GEAR SLV	1	$13.73
31	3446-400	HOUSING,ODOMETER GEAR	1	$100.95
32	3006-322	SEAL,OIL,12X21X7 '02 440 SNO PRO	1	$49.95
33	3446-402	SHAFT,ODOMETER GEAR	1	$100.95
34	3423-617	WASHER	1	$3.02
35	3402-837	ROTOR,SPEED	1	$50.95
36	3423-767	WASHER	1	$2.95
37	3402-980	BEARING,GEAR SHAFT	1	$64.95
38	3423-766	O-RING,GEAR HOUSING	1	$6.95
39	3446-401	COVER,ODOMETER	1	$66.95
40	3003-290	GASKET,CHECK VALVE,6MM	1	$3.85
41	3007-505	BOLT,OIL PAN	1	$3.16
42	3402-981	SENSOR,SPEED	1	$227.95
43	3423-226	BOLT, OIL HOSE 6X16	1	$2.95
