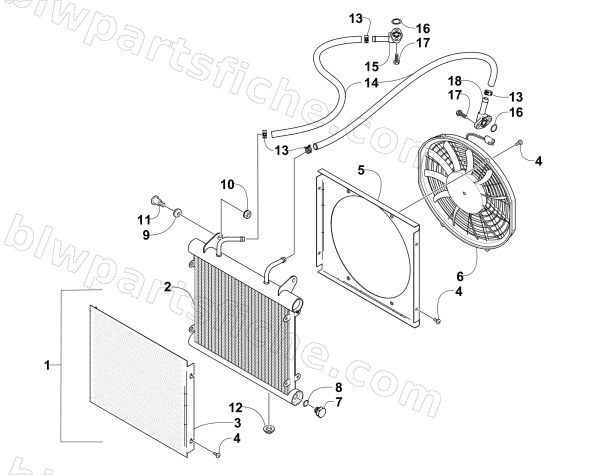

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — OIL COOLER ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-118 | COOLER,OIL-ASSEMBLY | 1 | $657.95 | |
| 2 | 0413-053 | COOLER,OIL | 1 | $443.95 | |
| 3 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 4 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 5 | 0413-064 | SHROUD,FAN-OIL COOLER | 1 | $67.95 | |
| 6 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 7 | 0413-058 | PLUG,DRAIN | 1 | $4.95 | |
| 8 | 0413-059 | O-RING,DRAIN PLUG | 1 | $2.95 | |
| 9 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 12 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 13 | 0423-098 | CLAMP,HOSE(NORMA FBS 17-12) | 1 | $2.75 | |
| 14 | 0410-044 | HOSE,OIL-30 (0410-014 CTL) | 1 | $47.95 | |
| 15 | 0410-013 | FITTING,OIL - MACH | 1 | $58.95 | |
| 16 | 0423-089 | O-RING,OIL FITTING-1/2IDX11/16OD X 3/32 | 1 | $2.06 | |
| 17 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 18 | 0410-012 | FITTING,OIL ANGLED - MACH | 1 | $58.95 |
