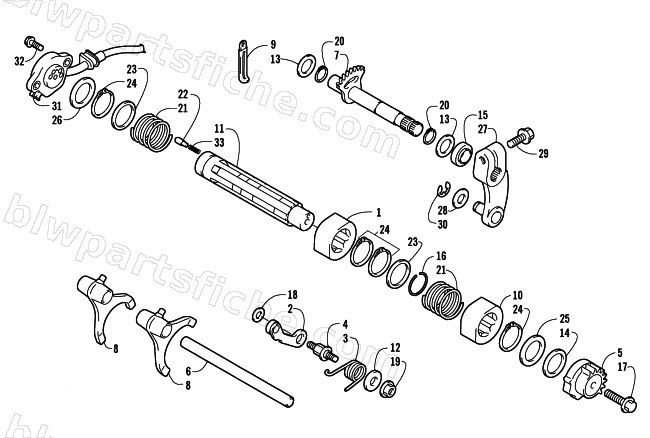

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — GEAR SHIFTING ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-640 | CAM, GEAR SHIFT REVERSE | 1 | $112.95 | |
| 2 | 3446-043 | STOPPER, GEAR SHIFT CAM | 1 | $30.95 | |
| 3 | 3446-283 | SPRING,GEAR SHIFT CAM STOPPER | 1 | $26.95 | |
| 4 | 3446-048 | SUPPORT, CAM STOPPER ARM | 1 | $32.95 | |
| 5 | 3402-642 | PLATE, GR SHIFT CAM STOPPER | 1 | $97.95 | |
| 6 | 3402-643 | SHAFT, GEAR SHIFT FORK | 1 | $35.95 | |
| 7 | 3402-644 | SHAFT, SUB T/M GEAR SHIFT FORK | 1 | $118.95 | |
| 8 | 3446-073 | FORK, SUB T/M GEAR SHIFT | 1 | $126.95 | |
| 9 | 3004-787 | CLAMP,M6 | 1 | $4.26 | |
| 10 | 3402-670 | CAM, SUB T/M GEAR SHIFT | 1 | $122.95 | |
| 11 | 3446-281 | SHAFT, SUB T/M GR SHF STOP | 1 | $164.95 | |
| 12 | 3423-438 | WASHER, 6.5 X 16 X 2.3 | 1 | $2.95 | |
| 13 | 1691-043 | SHIM, M12X20X1.0 | 1 | $3.44 | |
| 14 | 3423-446 | SHIM, (0.5) | 1 | $6.34 | |
| 15 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 16 | 3423-416 | C RING, SUB T/M CAM STOP | 1 | $5.78 | |
| 17 | 3007-380 | BOLT | 1 | $3.16 | |
| 18 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 19 | 3007-373 | NUT | 1 | $3.16 | |
| 20 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 21 | 3446-280 | SPRING, SUB T/M SHIFT CAM | 1 | $10.95 | |
| 22 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 23 | 3402-382 | SHIM,M25X32X1 | 1 | $6.34 | |
| 24 | 3423-191 | CIRCLIP,FASTENER | 1 | $2.33 | |
| 25 | 3402-195 | SHIM,20MM | 1 | $4.95 | |
| 26 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 27 | 3402-434 | ARM, COMPRESSION,-SELECT | 1 | $79.95 | |
| 28 | 3423-204 | WASHER | 1 | $1.95 | |
| 29 | 3007-409 | BOLT | 1 | $3.16 | |
| 30 | 3423-153 | E-RING, SHIFT LEVER PIN,FASTENER | 1 | $3.57 | |
| 31 | 3402-997 | BASE-ASSY,GEAR SHIFT TERM | 1 | $220.95 | |
| 32 | 3423-418 | BOLT, BASE ASSY | 1 | $3.30 | |
| 33 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 |
