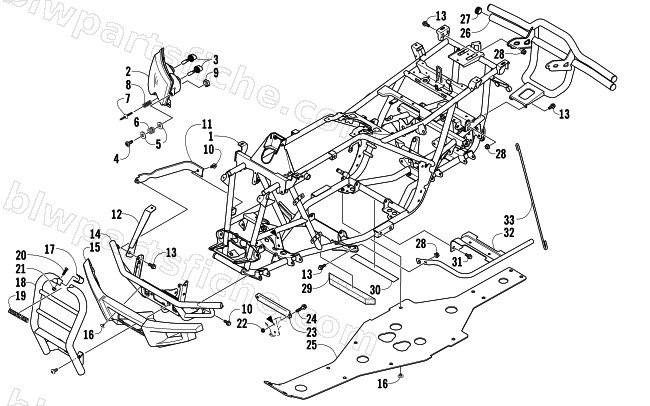

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — FRAME AND RELATED PARTS
2006 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-717 | FRAME,PAINTED BLACK(A/B-BODY)SINGLE | 1 | $1,920.95 | |
| 2 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 2 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 3 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 4 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 6 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 7 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 8 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 9 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 10 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 11 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 12 | 1506-686 | BRACKET,BUMPER-RH-BLACK | 1 | $26.95 | |
| 12 | 1506-687 | BRACKET,BUMPER-LH-BLACK | 1 | $26.95 | |
| 13 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 14 | 1506-684 | BUMPER,FRONT-BLACK | 1 | $208.95 | |
| 15 | 1406-868 | FASCIA,BUMPER-FRONT | 1 | $64.95 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 17 | 1506-667 | STRAP,BUMPER SUPPORT-BLACK | 1 | $13.73 | |
| 18 | 1506-708 | BUMPER,LE-BLACK | 1 | $224.95 | |
| 19 | 1411-151 | DECAL,"ARCTIC CAT"-LIME GREEN | 1 | $17.95 | |
| 20 | 8468-845 | SCREW,MACH-TSPNH M8X1.25X45 CL8.8 BLK | 1 | $4.26 | |
| 21 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 22 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 23 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 24 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 25 | 1406-030 | PANEL,BELLY | 1 | $187.95 | |
| 26 | 0436-757 | KIT,BUMPER, REAR (B-BODY) | 1 | $221.95 | |
| 27 | 2406-045 | CAP,TUBE-1.375 IN OD | 1 | $3.95 | |
| 28 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 29 | 1506-067 | FOAM, FRAME | 1 | $3.16 | |
| 30 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 31 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 32 | 1506-659 | FOOTREST,RH-PTD-BLACK | 1 | $79.95 | |
| 32 | 1506-660 | FOOTREST,LH-PTD-BLACK | 1 | $79.95 | |
| 33 | 1406-853 | ROD,SUPPORT | 1 | $10.95 |
