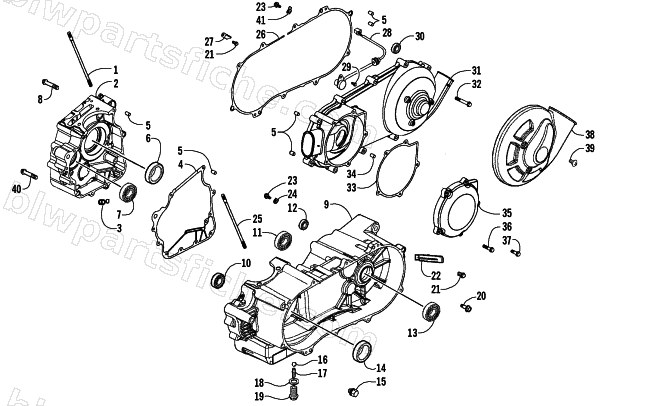

CRANKCASE ASSEMBLY

2006 250 DVX

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3304-008	BOLT STUD 8MM	1	$5.51
2	3303-626	CRANK CASE COMP R	1	$272.95
3	3304-065	CONE TYPE PLUG 6*7	1	$1.37
4	3303-628	GASKET CRANK CASE A	1	$20.63
5	3303-342	PIN DOWEL 10*16	1	$1.64
6	3304-091	OIL SEAL 25408	1	$3.57
7	3304-198	BRG BALL RADIAL 6304/205215	1	$26.95
8	3304-191	R/B 3307-062	1	$0.65
9	3304-221	CRANK CASE COMP L	1	$638.95
10	3304-195	BRG RADIAL BALL 6205	1	$20.63
11	3304-699	BRG BALL RADIAL 6204	1	$20.63
12	3304-074	BRG NEEDLE 202616	1	$23.39
13	3304-067	BRG BALL 6305	1	$33.95
14	3304-079	OIL SEAL 27427	1	$16.49
15	3304-052	BOLT DRAIN PLUG SPECIAL	1	$3.02
16	3304-205	BALL STEEL 12	1	$1.50
17	3304-063	SPG BOLT SEAT INNER	1	$2.33
18	3304-021	WASHER BOLT SEAT	1	$0.95
19	3304-109	BOLT SEAT BALL STOPPER	1	$3.30
20	3303-365	R/B 3304-544	1	$0.95
21	3303-381	BOLT FLANGE SH 6*12	1	$0.81
22	3304-158	CLIP 2*100	1	$1.95
23	3304-005	BOLT SPECIAL 6*10 96600-08010 N.C.	1	$1.50
24	3304-040	PLATE BRG HOLDER	1	$3.02
25	3304-009	BOLT B STUD 8MM	1	$4.95
26	3303-642	GASKET L COVER	1	$58.95
27	3303-843	CLAMPER WIRE HARNESS	1	$2.06
28	3304-698	SW ASSY GEAR CHANGE	1	$58.95
29	3304-187	BOLT FLANGE 6*10	1	$0.81
30	3304-073	BEARING BALL RADIAL	1	$33.95
31	3303-632	COVER LEFT	1	$252.95
32	3304-003	BOLT FLANGE SHF 6*28	1	$0.65
33	3304-101	GASKET STARTING COVER	1	$10.97
34	3303-341	PIN DOWEL 8*14	1	$2.33
35	3304-225	COVER STARTING	1	$74.95
36	3304-190	R/B 3305-945	1	$0.65
37	3303-384	BOLT FLANGE SH 6*25	1	$0.81
38	3304-222	COVER L COVER	1	$26.95
39	3304-407	SCREW PAN 6*12	1	$1.78
40	3304-004	BOLT FLANGE SHF 6*40	1	$0.81
41	3304-039	PLATE BRG HOLDER	1	$1.50
