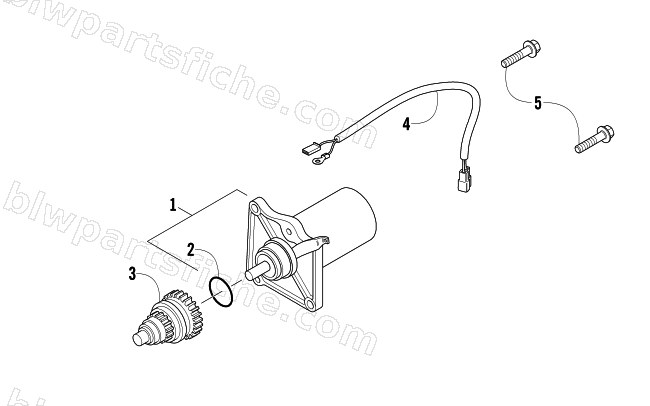

2005 Arctic Cat 90 Y-12 YOUTH — STARTER MOTOR ASSEMBLY
2005 90 Y-12 YOUTH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-706 | STARTING MOTOR | 1 | $205.95 | |
| 2 | 3301-707 | O-RING | 1 | $10.97 | |
| 3 | 3301-709 | STARTER PINION ASS'Y | 1 | $271.95 | |
| 4 | 3301-708 | SUB. HARNESS | 1 | $74.95 | |
| 5 | 3301-622 | HEX WASHER FACE BOLT | 1 | $1.95 |
