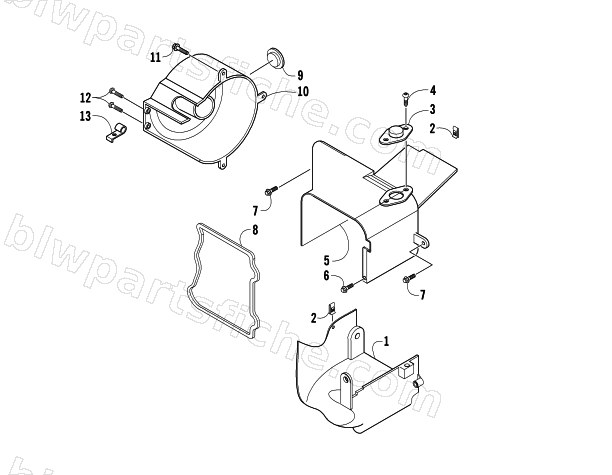

2005 Arctic Cat 90 Y-12 YOUTH — FAN SHROUD ASSEMBLY
2005 90 Y-12 YOUTH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-692 | SHROUD A | 1 | $30.95 | |
| 2 | 3301-693 | U PLATE NUT | 1 | $3.95 | |
| 3 | 3301-696 | TENSIONER LIFTER COVER | 1 | $1.95 | |
| 4 | 3301-697 | HEX TRUSS HEAD TAPPING SCREW | 1 | $1.50 | |
| 5 | 3301-695 | SHROUD B | 1 | $22.95 | |
| 6 | 3301-698 | HEX WASHER FACE BOLT | 1 | $1.92 | |
| 7 | 3301-688 | HEX WASHER FACE BOLT | 1 | $2.95 | |
| 8 | 3301-700 | SHROUD SEAL | 1 | $20.95 | |
| 9 | 3301-702 | RUBBER BUNG | 1 | $2.61 | |
| 10 | 3301-701 | GENERATOR COVER | 1 | $35.95 | |
| 11 | 3301-622 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 12 | 3301-704 | HEX TRUSS HEAD TAPPING SCREW | 1 | $1.50 | |
| 13 | 3301-013 | CLAMP | 1 | $3.95 |
