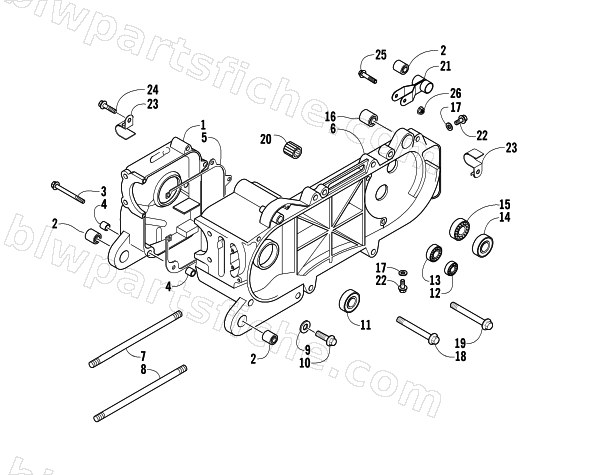

CRANKCASE ASSEMBLY
2005 90 Y-12 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-772 | RIGHT CRANKCASE | 1 | $203.95 | |
| 2 | 3301-763 | BUSH, ENGINE HANGER RUBBER" | 1 | $6.95 | |
| 3 | 3301-774 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 4 | 3301-775 | DOWEL PIN | 1 | $2.95 | |
| 5 | 3301-776 | GASKET CRANKCASE | 1 | $13.95 | |
| 6 | 3301-777 | LEFT CRANKCASE | 1 | $300.95 | |
| 7 | 3301-778 | STUD BOLT | 1 | $16.49 | |
| 8 | 3301-779 | STUD BOLT | 1 | $16.49 | |
| 9 | 3301-780 | PLAIN WASHER | 1 | $10.95 | |
| 10 | 3301-781 | HEX WASHER FACE BOLT | 1 | $4.95 | |
| 11 | 3301-782 | OIL SEAL | 1 | $13.95 | |
| 12 | 3301-783 | RADIAL BALL BEARING | 1 | $22.95 | |
| 13 | 3301-414 | RADIAL BALL BEARING | 1 | $21.95 | |
| 14 | 3301-784 | OIL SEAL | 1 | $5.95 | |
| 15 | 3301-785 | RADIAL BALL BEARING | 1 | $71.95 | |
| 16 | 3301-786 | RUBBER BUSHING | 1 | $10.95 | |
| 17 | 3301-760 | PLAIN WASHER | 1 | $1.50 | |
| 18 | 3301-839 | HEX WASHER FACE BOLT | 1 | $4.13 | |
| 19 | 3301-789 | HEX WASHER FACE BOLT | 1 | $2.95 | |
| 20 | 3301-418 | NEEDLE BEARING | 1 | $25.95 | |
| 21 | 3301-790 | CRANKCASE LEFT BRACKET | 1 | $119.95 | |
| 22 | 3301-791 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 23 | 3301-013 | CLAMP | 1 | $3.95 | |
| 24 | 3301-877 | WASHER,HEX-FACE BOLT | 1 | $0.85 | |
| 25 | 3301-788 | HEX WASHER FACE BOLT | 1 | $4.95 | |
| 26 | 3301-330 | HEX FLANGE NUT WITH SERRATION | 1 | $1.37 |
