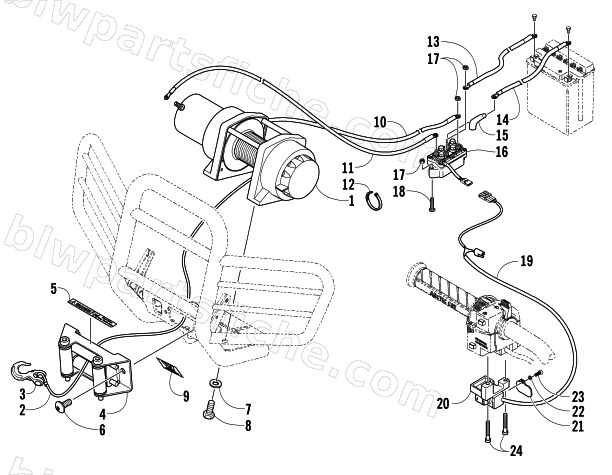

WINCH ASSEMBLY
2005 650 V-2 4X4 FIS LE CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0441-061 | CABLE, WIRE ROPE - 15236 | 1 | $113.95 | |
| 3 | 1441-131 | HOOK,WINCH W/STRAP AND WARNING TAG | 1 | $46.95 | |
| 4 | 0441-403 | FAIRLEAD,ROLLER-1600 (B) | 1 | $35.95 | |
| 5 | 0411-474 | DECAL,WARNING-ROLLER FAIRLEAD | 1 | $212.95 | |
| 6 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 7 | 8051-246 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&C | 1 | $0.68 | |
| 8 | 1623-131 | SCREW,CAP-HH 5/16-18 X 1" GR 5 Z & C | 1 | $0.15 | |
| 10 | 1441-111 | CABLE,WINCH-TO-SOLENOID-YELLOW (15") | 1 | $27.95 | |
| 11 | 1441-110 | CABLE,WINCH-TO-SOLENOID-BLUE (15") | 1 | $27.95 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 1441-112 | CABLE,BATTERY-SOLENOID (75" BLK #6) | 1 | $64.95 | |
| 14 | 1441-113 | CABLE,BATTERY-SOLENOID (75" RED #6) | 1 | $55.95 | |
| 15 | 0441-060 | BOOT, TERMINAL | 1 | $2.61 | |
| 16 | 0409-066 | R/B 0409-246 | 1 | $139.95 | |
| 17 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 18 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 19 | 1436-049 | SWITCH,WINCH-SERV. PKG | 1 | $57.95 | |
| 20 | 0409-034 | HOLDER, SWITCH-WINCH (500 A) | 1 | $10.97 | |
| 21 | 0409-075 | COVER,SWITCH | 1 | $16.95 | |
| 22 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 23 | 0423-382 | SCREW, COVER-WINCH SWITCH | 1 | $0.68 | |
| 24 | 8464-560 | SCREW,MACH-PHTRH M5-.8X60 Z&BLK | 1 | $12.35 |
