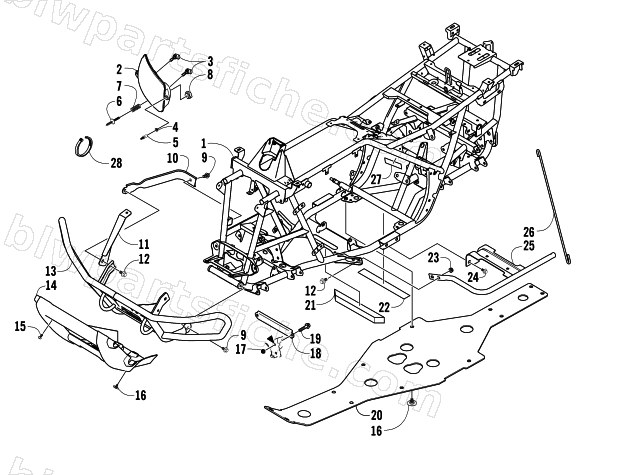

2005 Arctic Cat 650 V-2 4X4 FIS CA — FRAME AND RELATED PARTS
2005 650 V-2 4X4 FIS CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-832 | FRAME,PAINTED BLACK(2005 K) | 1 | $2,267.95 | |
| 2 | 0509-076 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 2 | 0509-077 | HEADLIGHT,LH-ASSY | 1 | $137.95 | |
| 3 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 4 | 0423-452 | SOCKET,MOUNTING-BALL | 1 | $4.95 | |
| 5 | 0423-515 | STUD,BALL-8.0 DIA X M5 | 1 | $6.95 | |
| 6 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 7 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 8 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 9 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 10 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 11 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 11 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 12 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 1506-855 | BUMPER,FRONT-BLACK (A-BODY) | 1 | $208.95 | |
| 13 | 1506-398 | BUMPER,LE-BLACK | 1 | $331.95 | |
| 14 | 1406-360 | FASCIA,BUMPER-FRONT (BLACK) | 1 | $54.95 | |
| 14 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 15 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 15 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 16 | 1506-667 | STRAP,BUMPER SUPPORT-BLACK | 1 | $13.73 | |
| 17 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 17 | 8468-845 | SCREW,MACH-TSPNH M8X1.25X45 CL8.8 BLK | 1 | $4.26 | |
| 18 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 19 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 20 | 1406-425 | PANEL,BELLY | 1 | $114.95 | |
| 21 | 1506-067 | FOAM, FRAME | 1 | $3.16 | |
| 22 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 23 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 23 | 1506-615 | BUMPER,REAR-ASSY (LE BLACK) | 1 | $328.95 | |
| 24 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 24 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 25 | 1506-380 | FOOTREST,RH-PTD BLACK | 1 | $79.95 | |
| 25 | 1506-379 | FOOTREST,LH-PTD BLACK | 1 | $79.95 | |
| 26 | 1406-298 | ROD, SUPPORT | 1 | $10.95 | |
| 27 | 0412-298 | SHIELD,HEAT | 1 | $3.16 | |
| 28 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 |
