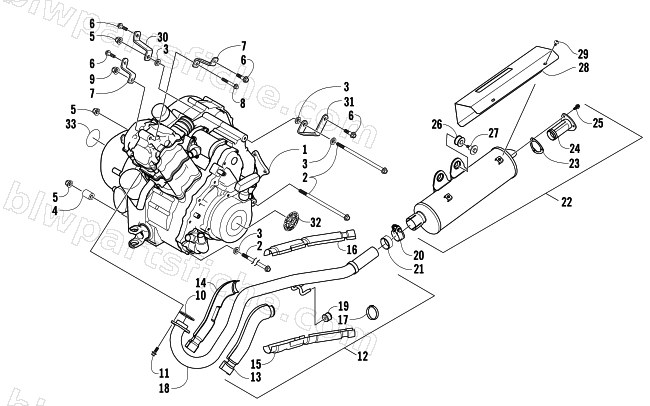

2005 Arctic Cat 650 H1 4X4 LE — ENGINE AND EXHAUST
2005 650 H1 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0437-057 | KIT,ENGINE 650 H1 W/BUSHINGS | 1 | $5,474.95 | |
| 2 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 3 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 4 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 5 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 6 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 1506-898 | BRACKET,ENGINE MOUNT-RH-BLACK | 1 | $21.95 | |
| 7 | 1506-900 | BRACKET,ENGINE MOUNT-LH-BLACK | 1 | $21.95 | |
| 8 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 9 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 11 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 12 | 0512-215 | R/B 0512-333 | 1 | $266.95 | |
| 13 | 0412-349 | SHIELD,EXHAUST PIPE | 1 | $34.95 | |
| 14 | 0412-348 | SHIELD,EXHAUST PIPE | 1 | $48.95 | |
| 15 | 0412-271 | SHIELD,EXHAUST-REAR INNER | 1 | $20.63 | |
| 16 | 0412-350 | SHIELD,EXHAUST PIPE | 1 | $30.95 | |
| 17 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 18 | 0512-183 | PIPE,EXHAUST-BLACK | 1 | $180.95 | |
| 19 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 20 | 0512-210 | CLAMP,EXHAUST-ASSEMBLY | 1 | $79.95 | |
| 21 | 0412-217 | SEAL, EXHAUST | 1 | $41.95 | |
| 22 | 0512-222 | MUFFLER-PAINTED | 1 | $584.95 | |
| 23 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 24 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 25 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 26 | 0412-253 | BUSHING,MUFFLER | 1 | $2.95 | |
| 27 | 0423-476 | SCREW, SHOULDER | 1 | $3.44 | |
| 28 | 0412-317 | COVER,MUFFLER | 1 | $45.95 | |
| 29 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 30 | 1506-632 | BRACKET,ENGINE MOUNT-RH (PAINTED BLACK) | 1 | $34.95 | |
| 31 | 1506-633 | BRACKET,ENGINE MOUNT-LH (PAINTED BLACK) | 1 | $31.95 | |
| 32 | 1411-176 | DECAL,"DURAMATIC" - ENGINE | 1 | $23.39 |
