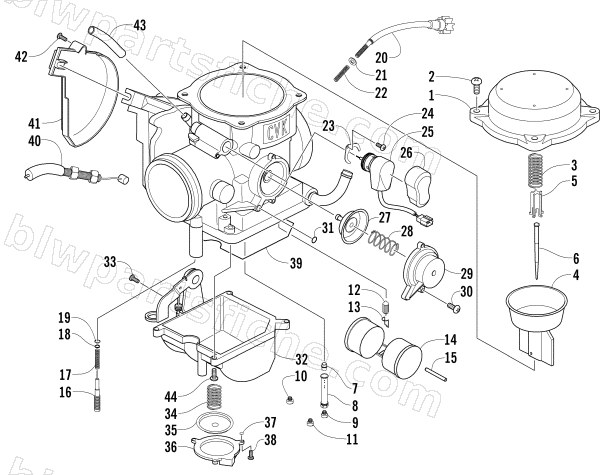

CARBURETOR
2005 650 H1 4X4 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0470-482 | CARB,CVK 40-AE | 1 | $721.95 | |
| 1 | 5507-186 | TOP | 1 | $58.95 | |
| 2 | 5507-187 | SCREW(TOP) | 1 | $1.50 | |
| 3 | 5507-188 | SPRING | 1 | $25.95 | |
| 4 | 5507-189 | VACUUM PISTON | 1 | $126.95 | |
| 5 | 5507-190 | SPRING SEAT | 1 | $10.95 | |
| 6 | 5507-191 | JET NEEDLE | 1 | $25.95 | |
| 7 | 5507-192 | NEEDLE JET | 1 | $20.63 | |
| 8 | 5507-193 | NEEDLE JET HOLDER | 1 | $20.63 | |
| 9 | 5507-076 | JET, MAIN-138 | 1 | $13.73 | |
| 9 | 5507-072 | JET, MAIN-125 | 1 | $13.73 | |
| 9 | 5507-073 | JET, MAIN-128 | 1 | $13.73 | |
| 9 | 5507-074 | JET, MAIN-130 | 1 | $13.73 | |
| 9 | 5507-075 | JET, MAIN-132 | 1 | $13.73 | |
| 9 | 5507-057 | MAIN, JET(135) | 1 | $16.49 | |
| 9 | 5507-043 | MAIN JET 142 | 1 | $16.49 | |
| 9 | 5507-042 | MAIN JET 145 | 1 | $16.49 | |
| 9 | 5507-041 | MAIN JET 148 | 1 | $16.49 | |
| 9 | 5507-009 | MAIN JET 150 | 1 | $16.49 | |
| 9 | 5507-077 | JET, MAIN-152 | 1 | $13.73 | |
| 9 | 5507-078 | JET, MAIN-155 | 1 | $13.73 | |
| 10 | 5507-070 | JET, SLOW #40 | 1 | $20.63 | |
| 11 | 5507-112 | STARTER/MAIN JET 85 | 1 | $20.63 | |
| 12 | 5507-183 | FLOAT VALVE SET | 1 | $37.95 | |
| 14 | 5507-039 | FLOAT SET | 1 | $37.95 | |
| 16 | 5507-111 | PILOT SCREW SET | 1 | $26.95 | |
| 20 | 5507-027 | STOP SCREW COMP. | 1 | $122.95 | |
| 21 | 5507-028 | WASHER | 1 | $0.40 | |
| 22 | 5507-029 | SPRING | 1 | $5.92 | |
| 23 | 5507-115 | PLATE | 1 | $17.87 | |
| 24 | 5507-117 | SCREW | 1 | $1.23 | |
| 25 | 5507-196 | AUTO BY-ST ASS'Y | 1 | $275.95 | |
| 26 | 5507-114 | COVER | 1 | $66.95 | |
| 27 | 5507-116 | DIAPHRAGM ASSY | 1 | $69.95 | |
| 28 | 5507-104 | COIL SPRING | 1 | $4.54 | |
| 29 | 5507-105 | COVER | 1 | $50.95 | |
| 30 | 5507-106 | SCREW | 1 | $2.06 | |
| 31 | 5507-102 | U-RING | 1 | $4.40 | |
| 33 | 5507-050 | SCREW, DRAIN | 1 | $3.02 | |
| 34 | 5507-032 | SPRING | 1 | $13.73 | |
| 35 | 5507-197 | DIAPHRAGM | 1 | $42.95 | |
| 36 | 5507-198 | PUMP HOUSING | 1 | $20.63 | |
| 37 | 5507-034 | U RING | 1 | $3.02 | |
| 38 | 5507-035 | SCREW | 1 | $1.23 | |
| 39 | 5507-067 | O-RING, FLOAT CHAMBER | 1 | $16.49 | |
| 40 | 0487-049 | CABLE,THROTTLE | 1 | $69.95 | |
| 41 | 5507-036 | COVER | 1 | $4.95 | |
| 42 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 43 | 0410-056 | HOSE,VENT-CARBURATOR | 1 | $16.49 | |
| 44 | 5507-017 | SCREW | 1 | $7.30 |
