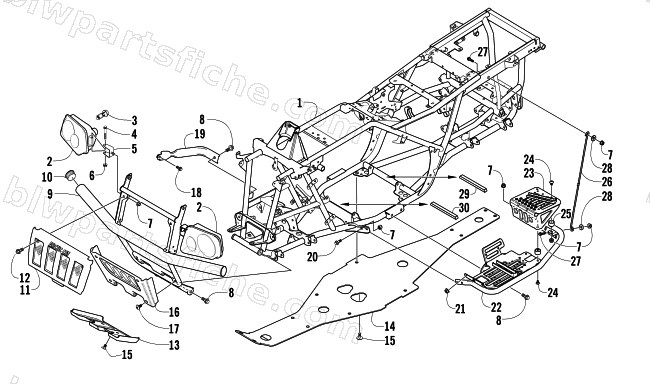

2005 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 TRV — FRAME AND RELATED PARTS
2005 500 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-460 | FRAME,MAIN-BLACK (2005 TRV) | 1 | $1,073.29 | |
| 2 | 0409-032 | HEADLIGHT,RH-ASSY | 1 | $135.95 | |
| 2 | 0409-031 | HEADLIGHT,LH-ASSY | 1 | $135.95 | |
| 3 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 4 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 5 | 0406-945 | BRKT, MTG,-HEADLIGHT | 1 | $29.95 | |
| 6 | 0423-375 | NUT,FLANGE NYLOCK-M8 | 1 | $1.23 | |
| 7 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 9 | 0506-544 | BUMPER,FR-BLACK (LG CH) | 1 | $324.95 | |
| 10 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 12 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 13 | 1441-008 | PLATE,SKID-FWD MARSH GREEN | 1 | $20.95 | |
| 13 | 1441-006 | PLATE,SKID-FWD RED | 1 | $21.95 | |
| 13 | 1441-007 | PLATE,SKID-FWD LIME GREEN | 1 | $21.95 | |
| 14 | 1406-176 | PANEL,BELLY | 1 | $180.95 | |
| 15 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 16 | 1406-420 | GRILLE, LOWER | 1 | $49.95 | |
| 17 | 8468-830 | SCREW,MACH-TSPNH M8X1.25X30 CL8.8 BLK | 1 | $9.59 | |
| 18 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 19 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 20 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 21 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 22 | 1506-506 | FOOTREST,RH-PTD BLK | 1 | $193.95 | |
| 22 | 1506-507 | FOOTREST,LH-PTD BLK | 1 | $193.95 | |
| 23 | 1506-508 | FOOTREST,PASSENGER-BLACK-RH | 1 | $110.95 | |
| 23 | 1506-509 | FOOTREST,PASSENGER-BLACK-LH | 1 | $110.95 | |
| 24 | 0423-412 | SCREW,MACH-TSTRH M8X1.25X12 PHOS BLK | 1 | $4.54 | |
| 25 | 1406-643 | MOUNT,RUBBER | 1 | $8.95 | |
| 26 | 1406-641 | ROD,SUPPORT-RH | 1 | $11.95 | |
| 26 | 1406-642 | ROD,SUPPORT-LH | 1 | $11.95 | |
| 27 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 28 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 29 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 30 | 1506-067 | FOAM, FRAME | 1 | $3.16 |
