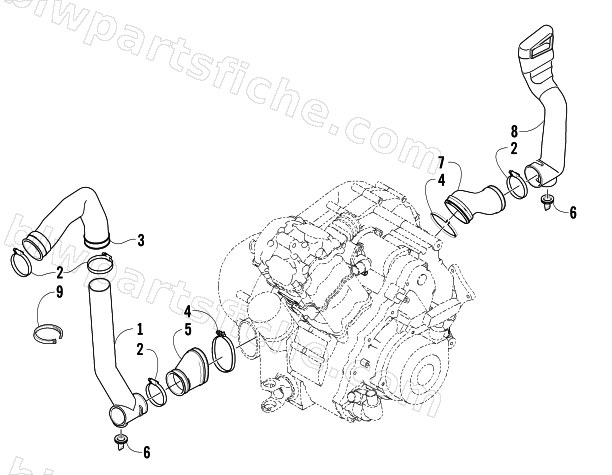

2005 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 FIS LE — CASE/BELT COOLING ASSEMBLY
2005 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0513-010 | DUCT,AIR IN-ROUTED | 1 | $47.95 | |
| 2 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 3 | 0413-092 | BOOT,AIR IN-BELT COOLING | 1 | $58.95 | |
| 4 | 3402-449 | CLAMP, DUCT FRONT | 1 | $20.63 | |
| 5 | 0413-198 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 6 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 7 | 0413-055 | BOOT,BELT COOLING (500B) | 1 | $45.95 | |
| 8 | 0413-094 | DUCT,AIR OUT-BELT COOLING | 1 | $64.95 | |
| 9 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
