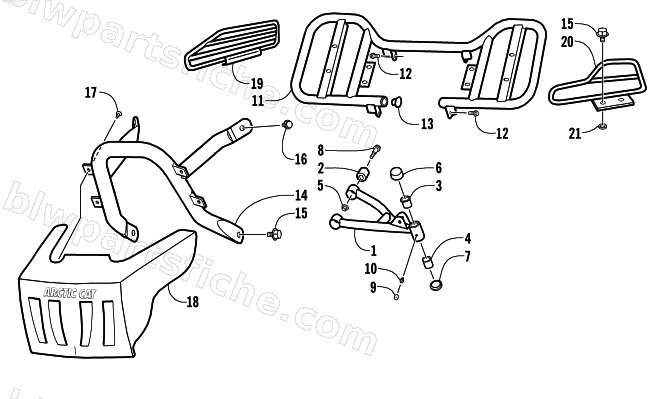

2005 Arctic Cat 50 Y-6 YOUTH — A-ARM, FLOOR PANEL, AND BUMPER ASSEMBLY
2005 50 Y-6 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-222 | LEFT SUSPENSION ARM | 1 | $87.95 | |
| 1 | 3301-218 | RIGHT SUSPENSION ARM | 1 | $79.95 | |
| 2 | 3301-428 | RUBBER BUSHING | 1 | $6.95 | |
| 3 | 3301-328 | BUSH | 1 | $3.95 | |
| 4 | 3301-219 | BUSH | 1 | $3.95 | |
| 5 | 3301-283 | NYLON NUT | 1 | $1.95 | |
| 6 | 3301-220 | WATERPROOF COVER | 1 | $2.95 | |
| 7 | 3301-580 | DUSTPROOF COVER | 1 | $2.95 | |
| 8 | 3301-402 | HEX WASHER FACE BOLT | 1 | $10.95 | |
| 9 | 3301-445 | GREASE VALVE CAP | 1 | $0.95 | |
| 10 | 3301-444 | GREASE VALVE | 1 | $1.50 | |
| 11 | 3301-251 | FLOOR PANEL | 1 | $135.95 | |
| 12 | 3301-400 | HEX WASHER FACE BOLT | 1 | $6.95 | |
| 13 | 3301-256 | FLOOR PANEL RUBBER CAP | 1 | $3.95 | |
| 14 | 3301-894 | BUMPER | 1 | $104.95 | |
| 15 | 3301-395 | HEX WASHER FACE BOLT | 1 | $3.95 | |
| 16 | 3301-388 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 17 | 3301-322 | TAPPING SCREW TRUSS HEAD PHILLIPS | 1 | $1.95 | |
| 18 | 3301-892 | COVER,BUMPER-RED | 1 | $48.95 | |
| 18 | 3301-893 | COVER,BUMPER-LIME GREEN | 1 | $48.95 | |
| 19 | 3301-255 | R. FLOOR PANEL GUARD | 1 | $48.95 | |
| 20 | 3301-254 | L. FLOOR PANEL GUARD | 1 | $52.95 | |
| 21 | 3301-476 | SPRING WASHER | 1 | $1.50 |
