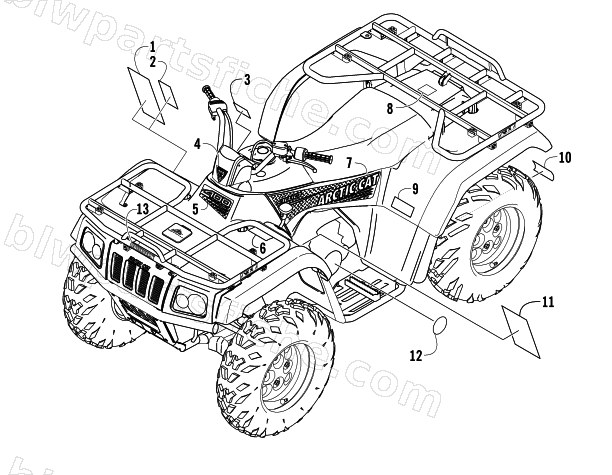

2005 Arctic Cat 400 MANUAL TRANSMISSION 4X4 FIS — DECALS
2005 400 MANUAL TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 2 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 3 | 0411-763 | DECAL,WARNING DIFF LOCK | 1 | $3.30 | |
| 4 | 0411-781 | DECAL,POD (GREEN ) | 1 | $10.97 | |
| 4 | 0411-780 | DECAL,POD (RED ) | 1 | $220.95 | |
| 4 | 0411-782 | DECAL,POD (LIME ) | 1 | $10.97 | |
| 5 | 0411-773 | DECAL,GRAPHIC-FRONT (05 400 GRN) | 1 | $16.49 | |
| 5 | 0411-771 | DECAL,GRAPHIC-FRONT (05 400 RED) | 1 | $13.95 | |
| 5 | 0411-772 | DECAL,GRAPHIC-FRONT (05 400 LIME) | 1 | $19.25 | |
| 6 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 7 | 0411-776 | DECAL,GRAPHIC-SIDE RH (05 GREEN) | 1 | $66.95 | |
| 7 | 0411-777 | DECAL,GRAPHIC-SIDE LH (05 GREEN) | 1 | $66.95 | |
| 7 | 0411-774 | DECAL,GRAPHIC-SIDE RH (05 RED) | 1 | $66.95 | |
| 7 | 0411-775 | DECAL,GRAPHIC-SIDE LH (05 RED) | 1 | $66.95 | |
| 7 | 0411-778 | DECAL,GRAPHIC-SIDE RH (05 LIME) | 1 | $66.95 | |
| 7 | 0411-779 | DECAL,GRAPHIC-SIDE LH (05 LIME) | 1 | $66.95 | |
| 8 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 9 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 10 | 0411-267 | DECAL,WARNING-TOWING(1050 LB) | 1 | $3.30 | |
| 11 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 12 | 0411-003 | DECAL,SHIFT PATTERN | 1 | $1.95 | |
| 13 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 |
