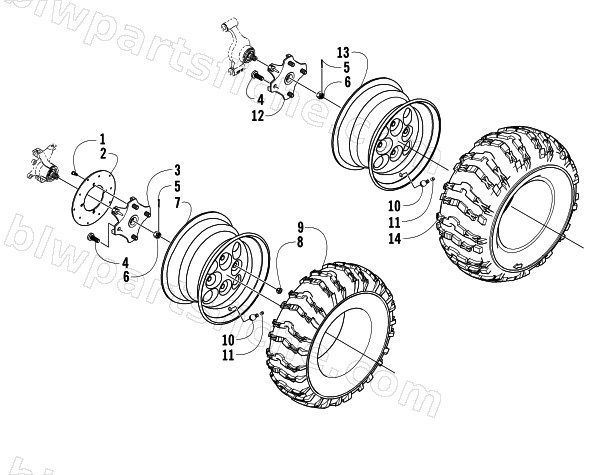

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 — WHEEL AND TIRE ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-462 | HUB - ASSEMBLY (W/DISC PEARCH) | 1 | $177.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 6 | 0423-394 | NUT,CASTLE FLANGE-M18X1.5 Z&Y | 1 | $13.73 | |
| 7 | 0402-856 | WHEEL ASSY-GRAY 12" | 1 | $114.95 | |
| 8 | 0423-408 | NUT,LUG-M10 | 1 | $1.37 | |
| 9 | 1402-254 | TIRE,KENDA-AT25X8-12K537 (FR) | 1 | $149.95 | |
| 10 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 12 | 1502-464 | HUB,ASSEMBLY (W/O DISC PEARCH) | 1 | $129.95 | |
| 13 | 0402-989 | WHEEL,GRAY-12x8.0 | 1 | $109.95 | |
| 14 | 1402-255 | TIRE,KENDA-AT25X10-12K537(RR) | 1 | $174.95 |
