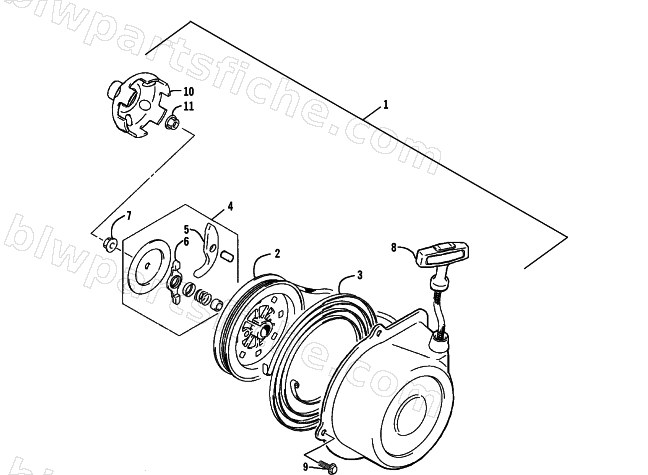

RECOIL STARTER ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3445-003 | STARTER ASSY, RECOIL | 1 | $316.95 | |
| 2 | 3445-004 | REEL, STARTER | 1 | $87.95 | |
| 3 | 3445-007 | SPRING, RECOIL | 1 | $69.95 | |
| 4 | 3445-016 | RATCHET SET | 1 | $29.95 | |
| 5 | 3445-005 | RATCHET SET | 1 | $20.63 | |
| 6 | 3445-006 | GUIDE, RATCHET | 1 | $6.20 | |
| 7 | 3007-373 | NUT | 1 | $3.16 | |
| 8 | 3445-011 | ROPE ASSY W GRIP,STARTER 6.0X1870 | 1 | $90.95 | |
| 9 | 3423-428 | SCREW, RECOIL STARTER | 1 | $3.30 | |
| 10 | 3445-029 | CUP,STARTER 500 ATV | 1 | $122.95 | |
| 11 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 |
