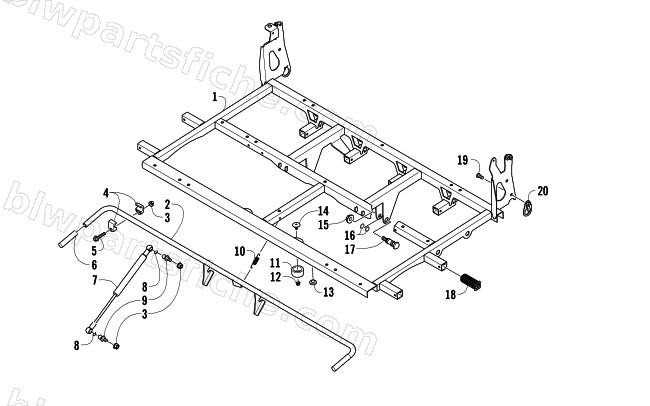

TILT FRAME ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-526 | FRAME,TILT-BLACK | 1 | $459.95 | |
| 2 | 1506-528 | LATCH,TILT BOX-BLACK | 1 | $94.95 | |
| 3 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 4 | 1406-674 | BUSHING,PIVOT | 1 | $4.82 | |
| 5 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 6 | 1406-736 | GRIP, LATCH ROD | 1 | $3.71 | |
| 7 | 0506-822 | SUPPORT,LIFT | 1 | $99.95 | |
| 8 | 0423-414 | RING,RETAINING | 1 | $15.95 | |
| 9 | 0423-401 | STUD,LIFT SUPPORT | 1 | $20.95 | |
| 10 | 0423-569 | SPRING,EXTENSION | 1 | $30.95 | |
| 11 | 1506-593 | BUMPER,TILT BOX | 1 | $3.30 | |
| 12 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 13 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 14 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 15 | 0423-388 | NUT,HEX FL M12-1.75 | 1 | $0.95 | |
| 16 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 17 | 0423-433 | PIN, PIVOT-CARGO BOX | 1 | $20.63 | |
| 18 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 19 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 20 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 |
