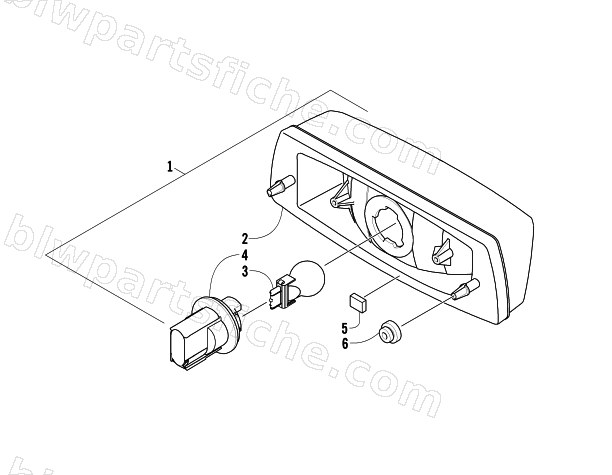

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TBX — TAILLIGHT ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 2 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 3 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 4 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 5 | 1406-790 | PAD,TAILLIGHT | 1 | $1.50 | |
| 6 | 0423-534 | GROMMET,TAILIGHT | 1 | $3.71 |
