2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — GAS TANK ASSEMBLY

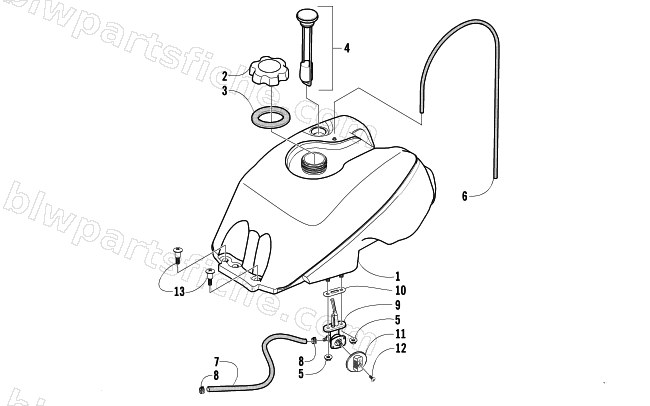

2005 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-066 | TANK, GAS-ASSY | 1 | $393.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0570-086 | GAUGE,FUEL-W/SEAL | 1 | $79.95 | |
| 5 | 0423-398 | NUT,LOCK M6X1.0 | 1 | $4.95 | |
| 6 | 0470-416 | HOSE, VENT,-GAS TANK | 1 | $20.63 | |
| 7 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 8 | 0423-152 | CLAMP, HOSE,-SPRING (09-45334) | 1 | $0.54 | |
| 9 | 0470-445 | VALVE, FUEL | 1 | $42.95 | |
| 10 | 0470-364 | GASKET,FUEL VALVE(T G) | 1 | $16.49 | |
| 11 | 0470-408 | KNOB, GAS VALVE | 1 | $3.30 | |
| 12 | 0423-146 | SCREW,VALVE KNOB | 1 | $1.92 | |
| 13 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 |
