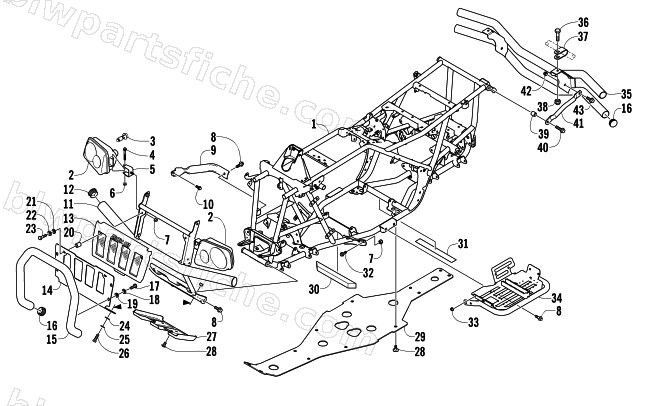

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — FRAME AND RELATED PARTS
2005 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-465 | FRAME, FIS - BLACK | 1 | $2,241.95 | |
| 2 | 0409-032 | HEADLIGHT,RH-ASSY | 1 | $135.95 | |
| 2 | 0409-031 | HEADLIGHT,LH-ASSY | 1 | $135.95 | |
| 3 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 4 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 5 | 0406-945 | BRKT, MTG,-HEADLIGHT | 1 | $29.95 | |
| 6 | 0423-375 | NUT,FLANGE NYLOCK-M8 | 1 | $1.23 | |
| 7 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 9 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 10 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 11 | 0506-544 | BUMPER,FR-BLACK (LG CH) | 1 | $324.95 | |
| 12 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 14 | 0541-290 | PLATE,BUMPER-BLACK | 1 | $71.95 | |
| 15 | 0541-291 | TUBE,BUMPER-BLACK | 1 | $169.95 | |
| 16 | 0441-517 | CAP,BUMPER | 1 | $2.95 | |
| 19 | 8450-127 | WASHER,FLAT-M8-9.12 X 18.80 X 2.30Z&Y | 1 | $0.95 | |
| 20 | 1441-132 | SPACER(19MM ODX9.5MM IDX22.2MM LG Z&C) | 1 | $7.72 | |
| 21 | 8450-108 | WASHER,FLAT M6-6.87X25.4X2.3 Z&C | 1 | $5.92 | |
| 23 | 8400-650 | SCREW,CAP-HH M6X1X50 8.8 Z&C | 1 | $0.85 | |
| 27 | 1441-007 | PLATE,SKID-FWD LIME GREEN | 1 | $21.95 | |
| 28 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 29 | 1406-030 | PANEL,BELLY | 1 | $187.95 | |
| 30 | 1506-067 | FOAM, FRAME | 1 | $3.16 | |
| 31 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 32 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 33 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 34 | 0506-534 | FOOTREST,RH-BLACK | 1 | $220.95 | |
| 34 | 0506-728 | FOOTREST, LH-BLACK | 1 | $141.95 | |
| 35 | 0541-288 | BUMPER,REAR-BLACK | 1 | $192.95 | |
| 37 | 0541-313 | CLAMP,U-BLK | 1 | $20.63 | |
| 38 | 8422-801 | NUT,HEX-THK NYL M8X1.25 CL8 Z&C | 1 | $0.95 | |
| 39 | 1441-134 | SPACER(19MM ODX11MM IDX19MM LG Z&C) | 1 | $11.95 | |
| 41 | 0441-486 | BUMPER SUPPORT,REAR-BLACK | 1 | $35.95 |
