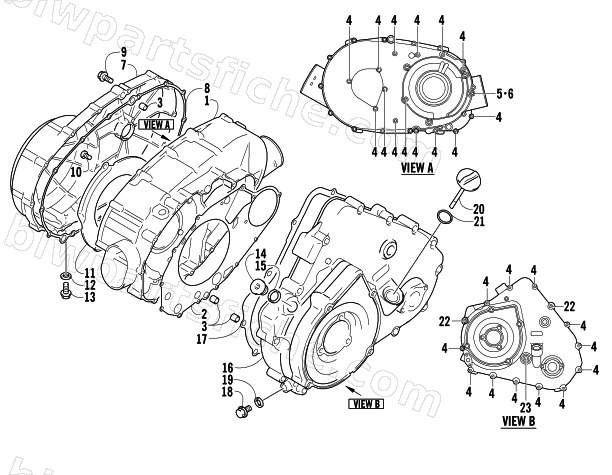

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-583 | COVER, CLUTCH | 1 | $854.95 | |
| 2 | 3402-589 | GASKET, CLUTCH COVER (NA) | 1 | $50.95 | |
| 3 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 4 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 5 | 3423-392 | BOLT | 1 | $3.02 | |
| 6 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 7 | 3402-586 | COVER, V-BELT | 1 | $494.95 | |
| 8 | 3402-591 | GASKET, V-BELT COVER (NA) | 1 | $74.95 | |
| 9 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 10 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 11 | 3402-996 | PLATE | 1 | $25.95 | |
| 12 | 3402-444 | GASKET | 1 | $6.06 | |
| 13 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 14 | 3403-236 | PLUG 16MM | 1 | $15.11 | |
| 15 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 16 | 3402-585 | COVER, MAGNETO | 1 | $525.95 | |
| 17 | 3402-590 | GASKET, MAGNETO COVER (NA) | 1 | $58.95 | |
| 20 | 3402-593 | GAUGE, OIL LEVEL | 1 | $30.95 | |
| 21 | 3423-055 | O RING D:3.1 ID:16.8 | 1 | $2.75 | |
| 22 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 23 | 3423-430 | BOLT, M8 X 140 | 1 | $4.54 |
