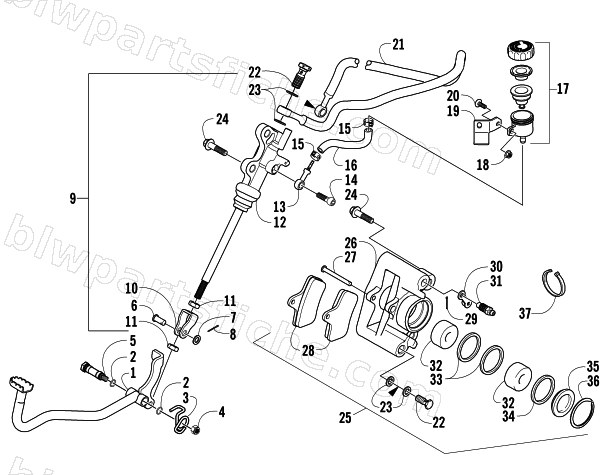

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — AUXILIARY BRAKE ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-645 | LEVER,FOOT BRAKE-BLACK (05 AUTO) | 1 | $79.95 | |
| 2 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 3 | 0502-651 | SPRING,FOOT BRAKE-BLACK | 1 | $13.73 | |
| 4 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 0402-872 | AXLE-FOOTBRAKE | 1 | $37.95 | |
| 7 | 0402-583 | WASHER,5/16 X.063(OL) | 1 | $0.55 | |
| 8 | 0402-584 | PIN, COTTER 1/16 X3/4(OL) | 1 | $1.09 | |
| 9 | 0437-053 | KIT,MASTER CYLINDER ADAPTER-FIS | 1 | $410.95 | |
| 11 | 0402-592 | NUT, JAM,M8 X 1.25 | 1 | $0.95 | |
| 13 | 1402-277 | BOLT,WASHERLESS BANJO FITTING | 1 | $13.73 | |
| 14 | 1402-278 | BOLT,BANJO-WASHERLESS | 1 | $6.75 | |
| 15 | 0423-525 | CLAMP,CTB 9MM | 1 | $1.64 | |
| 16 | 1402-266 | HOSE,BRAKE RESERVOIR | 1 | $30.95 | |
| 17 | 1402-257 | RESERVOIR,REMOTE MASTER-ASSY | 1 | $61.95 | |
| 18 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 19 | 1506-521 | BRACKET,RESERVOIR-BLACK | 1 | $17.87 | |
| 20 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 21 | 1402-200 | HOSE, BRAKE-REAR | 1 | $71.95 | |
| 22 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 23 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 24 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 25 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 27 | 0402-495 | PIN,HYD BRAKE CALIPER-(OL) | 1 | $3.57 | |
| 28 | 1402-126 | PAD,BRAKE-SINTERED | 1 | $29.95 | |
| 29 | 0423-495 | PIN, COTTER -1/16" X 1/2" | 1 | $0.65 | |
| 31 | 1402-123 | SCREW,BLEEDER-M8 | 1 | $3.95 | |
| 33 | 0402-980 | O RING-SQUARE | 1 | $17.87 | |
| 37 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
