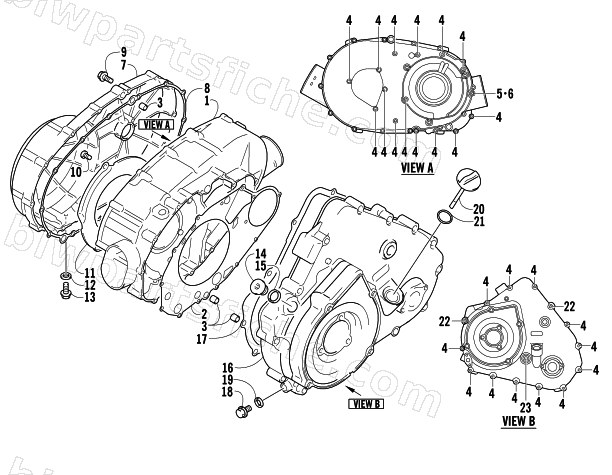

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE GM — CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4 FIS LE GM
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-583 | COVER, CLUTCH | 1 | $854.95 | |
| 2 | 3402-589 | GASKET, CLUTCH COVER (NA) | 1 | $50.95 | |
| 3 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 4 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 5 | 3423-392 | BOLT | 1 | $3.02 | |
| 6 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 7 | 3402-586 | COVER, V-BELT | 1 | $494.95 | |
| 8 | 3402-591 | GASKET, V-BELT COVER (NA) | 1 | $74.95 | |
| 9 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 10 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 11 | 3402-996 | PLATE | 1 | $25.95 | |
| 12 | 3402-444 | GASKET | 1 | $6.06 | |
| 13 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 14 | 3403-236 | PLUG 16MM | 1 | $15.11 | |
| 15 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 16 | 3402-585 | COVER, MAGNETO | 1 | $525.95 | |
| 17 | 3402-590 | GASKET, MAGNETO COVER (NA) | 1 | $58.95 | |
| 20 | 3402-593 | GAUGE, OIL LEVEL | 1 | $30.95 | |
| 21 | 3423-055 | O RING D:3.1 ID:16.8 | 1 | $2.75 | |
| 22 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 23 | 3423-430 | BOLT, M8 X 140 | 1 | $4.54 |
