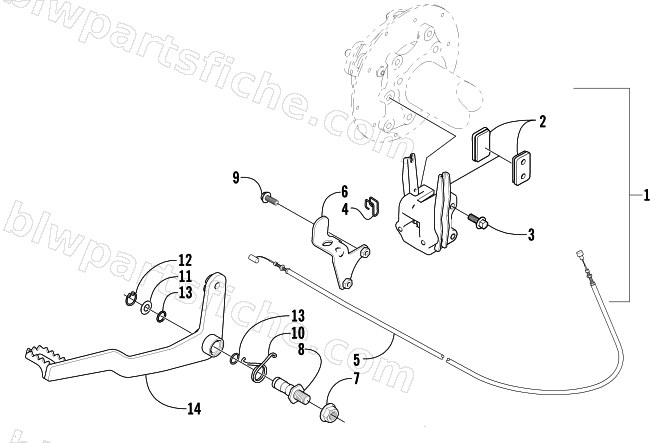

AUXILIARY BRAKE ASSEMBLY
2005 300
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-865 | CALIPER,BRAKE-MECHANICAL | 1 | $180.95 | |
| 2 | 1402-602 | PAD,BRAKE-MECH PARK | 1 | $30.95 | |
| 3 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 4 | 0402-379 | WIRE FORM,CABLE | 1 | $4.13 | |
| 5 | 0487-010 | CABLE,BRAKE RR | 1 | $126.95 | |
| 6 | 0502-056 | BRKT, BRAKE SWITCH-BLACK | 1 | $10.95 | |
| 7 | 0423-165 | NUT,M14-1.25 | 1 | $1.78 | |
| 8 | 0406-562 | AXLE, FOOT,BRAKE | 1 | $79.95 | |
| 9 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 10 | 0502-409 | SPRING,FOOTBRAKE-BLACK | 1 | $54.95 | |
| 11 | 0423-027 | WASHER,BRAKE LVR | 1 | $2.95 | |
| 12 | 0623-237 | SNAP RING,EXTL-5/8 DIA | 1 | $1.92 | |
| 13 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 14 | 0502-095 | LEVER,FOOT BRAKE-BLACK-REAMED | 1 | $59.95 |
