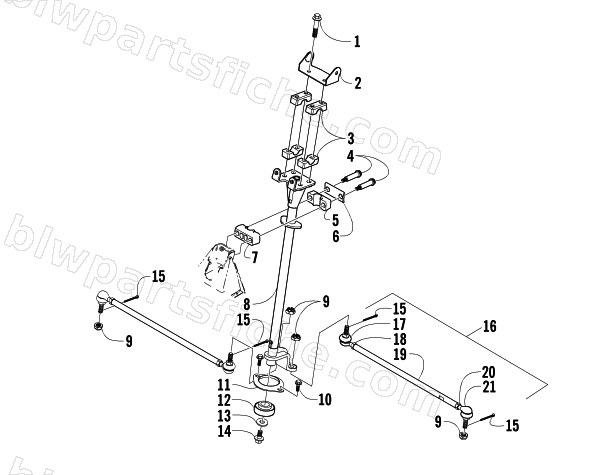

STEERING POST ASSEMBLY
2005 250 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 2 | 0506-348 | BRKT,KEY SWITCH-BLACK | 1 | $58.95 | |
| 3 | 0405-035 | CAP,STEERING ADJUSTER | 1 | $17.87 | |
| 4 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 5 | 0405-139 | HOUSING,UPPER | 1 | $6.47 | |
| 6 | 0405-166 | CAP, HOUSING-BLACK | 1 | $37.95 | |
| 7 | 0405-138 | HOUSING,LOWER | 1 | $10.97 | |
| 8 | 0505-431 | POST, STEERING-BLACK | 1 | $113.95 | |
| 9 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 10 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 12 | 0405-052 | BEARING, (ATV-BB-4) LOW SPEED-STEERING | 1 | $49.95 | |
| 13 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 14 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 15 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 16 | 0505-072 | TIE ROD-ASSY | 1 | $177.95 | |
| 17 | 0505-875 | ROD END PKG,TIE ROD-LH THREAD | 1 | $54.95 | |
| 18 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 19 | 0405-032 | TIE ROD | 1 | $45.95 | |
| 20 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 21 | 0405-502 | R/B 0505-874 | 1 | $54.95 |
