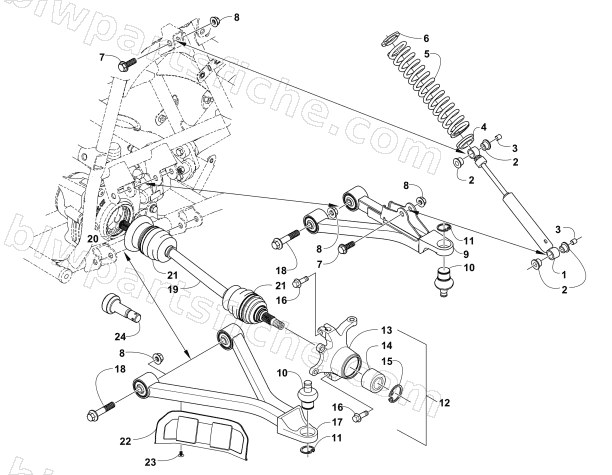

2005 Arctic Cat 250 2X4 — FRONT SUSPENSION ASSEMBLY
2005 250 2X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-036 | SHOCK ABSORBER,FR SUSP | 1 | $140.95 | |
| 2 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 3 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 4 | 0403-104 | RETAINER,SPRING-LOWER | 1 | $13.95 | |
| 5 | 0403-037 | SPRING, COIL - BLACK | 1 | $40.95 | |
| 6 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 7 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 9 | 0503-184 | A-ARM, UPPER - RH - FABRICATION | 1 | $220.95 | |
| 9 | 0503-185 | A-ARM, UPPER - LH - FABRICATION | 1 | $220.95 | |
| 10 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 11 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 12 | 0505-446 | KNUCKLE,STEERING-RH ASSY (KOYO) | 1 | $244.95 | |
| 12 | 0505-447 | KNUCKLE,STEERING-LH ASSY (KOYO) | 1 | $244.95 | |
| 14 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 15 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 16 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 17 | 0503-187 | A-ARM, LOWER LH - FABRICATION | 1 | $220.95 | |
| 17 | 0503-186 | A-ARM, LOWER RH - FABRICATION | 1 | $251.95 | |
| 18 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 24 | 1402-226 | AXLE,STUB (KOYO) | 1 | $67.95 |
