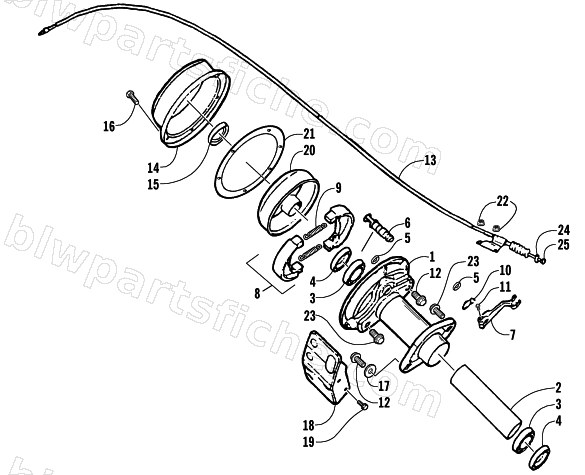

REAR BRAKE ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-182 | REAR BRAKE PANEL | 1 | $94.95 | |
| 2 | 3301-162 | REAR BRAKE PANEL SPACER | 1 | $20.95 | |
| 3 | 3301-413 | RADIAL BALL BEARING | 1 | $48.95 | |
| 4 | 3301-443 | OIL SEAL | 1 | $5.95 | |
| 5 | 3301-434 | OIL SEAL | 1 | $4.95 | |
| 6 | 3301-184 | REAR BRAKE CAM SHAFT | 1 | $26.95 | |
| 7 | 3301-186 | REAR BRAKE ARM | 1 | $20.95 | |
| 8 | 3301-183 | REAR BRAKE SHOE COMP. | 1 | $48.95 | |
| 9 | 3301-185 | SHOE STRAIN SPRING | 1 | $3.95 | |
| 10 | 3301-172 | RETURN SPRING | 1 | $5.95 | |
| 11 | 3301-392 | HEX WASHER FACE BOLT | 1 | $1.50 | |
| 12 | 3301-602 | HEX WASHER FACE BOLT 3 | 1 | $13.73 | |
| 13 | 3301-187 | REAR BRAKE CABLE | 1 | $35.95 | |
| 14 | 3301-166 | REAR DRUM COVER | 1 | $108.95 | |
| 15 | 3301-441 | OIL SEAL | 1 | $6.95 | |
| 16 | 3301-483 | HEX WASHER FACE BOLT | 1 | $5.37 | |
| 17 | 3301-473 | PLAIN WASHER | 1 | $4.95 | |
| 18 | 3301-167 | REAR BRAKE COVER | 1 | $30.95 | |
| 19 | 3301-393 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 20 | 3301-164 | REAR DRUM | 1 | $67.29 | |
| 21 | 3301-168 | REAR DRUM COVER GASKET | 1 | $4.95 | |
| 22 | 3301-330 | HEX FLANGE NUT WITH SERRATION | 1 | $1.37 | |
| 23 | 3301-601 | HEX WASHER FACE BOLT 2 | 1 | $13.95 | |
| 24 | 3301-908 | SPACER,BRAKE CABLE | 1 | $20.63 | |
| 25 | 3301-909 | NUT,ADJUSTER-BRAKE CABLE | 1 | $13.73 |
