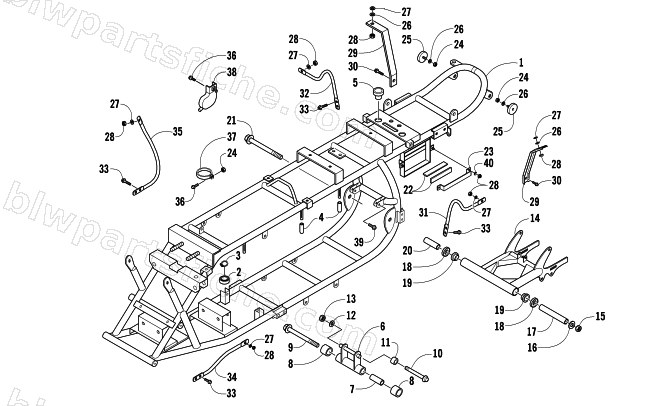

2004 Arctic Cat 90 Y-12 YOUTH 4-STROKE — FRAME ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-847 | FRAME COMP-90 ATV | 1 | $800.95 | |
| 2 | 3301-409 | RADIAL BALL BEARING | 1 | $25.95 | |
| 3 | 3301-381 | INTERNAL CIR CLIP | 1 | $2.95 | |
| 4 | 3301-449 | CABLE CLAMP RUBBER | 1 | $47.95 | |
| 5 | 3301-260 | BUMPER, RUBBER | 1 | $4.95 | |
| 6 | 3301-848 | ENGINE BRACKET ASS'Y | 1 | $108.95 | |
| 7 | 3301-854 | ENGINE COLLAR | 1 | $7.95 | |
| 8 | 3301-763 | BUSH, ENGINE HANGER RUBBER" | 1 | $6.95 | |
| 9 | 3301-850 | HEX.WASHER FACE BOLT | 1 | $4.13 | |
| 10 | 3301-855 | HEX WASHER FACE BOLT | 1 | $16.49 | |
| 11 | 3301-852 | RUBBER DAMPER | 1 | $3.95 | |
| 12 | 3301-357 | PLAIN WASHER | 1 | $2.95 | |
| 13 | 3301-283 | NYLON NUT | 1 | $1.95 | |
| 14 | 3301-581 | SWING ARM SUB ASS'Y | 1 | $151.95 | |
| 15 | 3301-284 | NYLON NUT | 1 | $3.95 | |
| 16 | 3301-349 | PLAIN WASHER | 1 | $3.95 | |
| 17 | 3301-227 | SWING ARM SPACER | 1 | $26.95 | |
| 18 | 3301-228 | SWING ARM SEAL COVER | 1 | $3.95 | |
| 19 | 3301-226 | BUSH | 1 | $5.95 | |
| 20 | 3301-582 | RUBBER SLEEVE | 1 | $6.95 | |
| 21 | 3301-407 | HEX WASHER FACE BOLT | 1 | $52.95 | |
| 22 | 3301-077 | SPONGE PAD | 1 | $6.95 | |
| 23 | 3301-853 | BATTERY BRACKET | 1 | $14.95 | |
| 24 | 3301-327 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 26 | 3301-356 | RUBBER WASHER | 1 | $8.95 | |
| 27 | 3301-340 | PLAIN WASHER | 1 | $1.95 | |
| 28 | 3301-281 | NYLON NUT | 1 | $6.95 | |
| 29 | 3301-266 | REAR COVER UP FIXED PLATE | 1 | $20.95 | |
| 30 | 3301-386 | HEX WASHER FACE BOLT | 1 | $5.95 | |
| 31 | 3301-267 | REAR COVER LOWER LEFT FIXED POLE | 1 | $22.01 | |
| 32 | 3301-265 | REAR COVER LOWER RIGHT FIXED POLE | 1 | $20.95 | |
| 33 | 3301-306 | HEX BOLT | 1 | $1.95 | |
| 34 | 3301-461 | FRONT COVER LEFT FIXED POLE | 1 | $26.95 | |
| 35 | 3301-462 | FRONT COVER RIGHT FIXED P0LE | 1 | $26.95 | |
| 36 | 3301-881 | HEX BOLT | 1 | $1.95 | |
| 37 | 3301-376 | CLIP | 1 | $4.95 | |
| 38 | 3301-460 | FUEL CUP BRACKET | 1 | $5.95 | |
| 39 | 3301-401 | HEX WASHER FACE BOLT | 1 | $5.95 | |
| 40 | 3301-338 | PLAIN WASHER | 1 | $1.95 |
