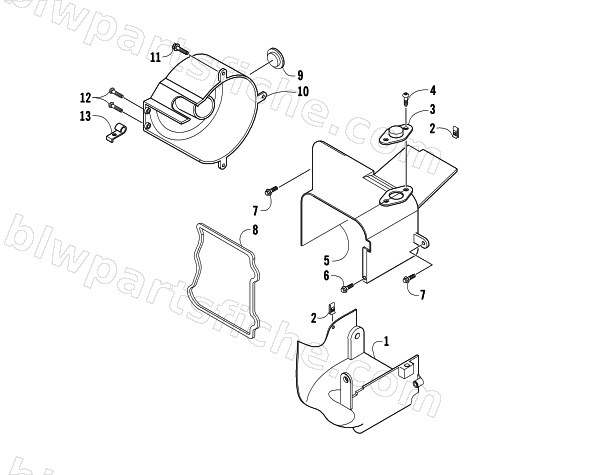

FAN SHROUD ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-692 | SHROUD A | 1 | $30.95 | |
| 2 | 3301-693 | U PLATE NUT | 1 | $3.95 | |
| 3 | 3301-696 | TENSIONER LIFTER COVER | 1 | $1.95 | |
| 4 | 3301-697 | HEX TRUSS HEAD TAPPING SCREW | 1 | $1.50 | |
| 5 | 3301-695 | SHROUD B | 1 | $22.95 | |
| 6 | 3301-698 | HEX WASHER FACE BOLT | 1 | $1.92 | |
| 7 | 3301-688 | HEX WASHER FACE BOLT | 1 | $2.95 | |
| 8 | 3301-700 | SHROUD SEAL | 1 | $20.95 | |
| 9 | 3301-702 | RUBBER BUNG | 1 | $2.61 | |
| 10 | 3301-701 | GENERATOR COVER | 1 | $35.95 | |
| 11 | 3301-622 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 12 | 3301-704 | HEX TRUSS HEAD TAPPING SCREW | 1 | $1.50 | |
| 13 | 3301-013 | CLAMP | 1 | $3.95 |
