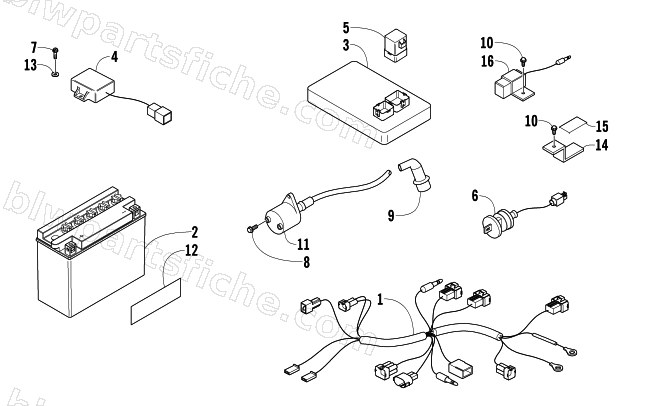

2004 Arctic Cat 90 Y-12 YOUTH 4-STROKE — ELECTRICAL
2004 90 Y-12 YOUTH 4-STROKE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-865 | MAIN WIRE HARNESS | 1 | $87.95 | |
| 2 | 3303-131 | BATTERY YTX5L-BS **(3) C.2001.02.07 | 1 | $126.95 | |
| 3 | 3301-867 | C.D.I UNIT | 1 | $220.95 | |
| 4 | 3301-146 | REGULATER RECTIFIER | 1 | $76.95 | |
| 5 | 3301-868 | STARTING RELAY | 1 | $62.95 | |
| 6 | 3301-151 | MAIN SWITCH ASS'Y | 1 | $45.95 | |
| 7 | 3301-316 | PAN PHILLIPS BOLT | 1 | $1.37 | |
| 8 | 3301-384 | HEX WASHER FACE BOLT | 1 | $1.37 | |
| 9 | 3301-869 | SPARK PLUG CAP | 1 | $18.95 | |
| 10 | 3301-386 | HEX WASHER FACE BOLT | 1 | $5.95 | |
| 11 | 3301-871 | HIGH TENSION COIL | 1 | $56.95 | |
| 12 | 3301-463 | DECAL, WARNING BATTERY PROPNITION | 1 | $13.95 | |
| 13 | 3301-360 | SPRING WASHER | 1 | $1.95 | |
| 14 | 3301-872 | C.D.I FIXED BRACKET | 1 | $9.95 | |
| 15 | 3301-873 | SPONGE OF C.D.I | 1 | $1.37 | |
| 16 | 3301-874 | RESISTOR COMP | 1 | $45.95 |
