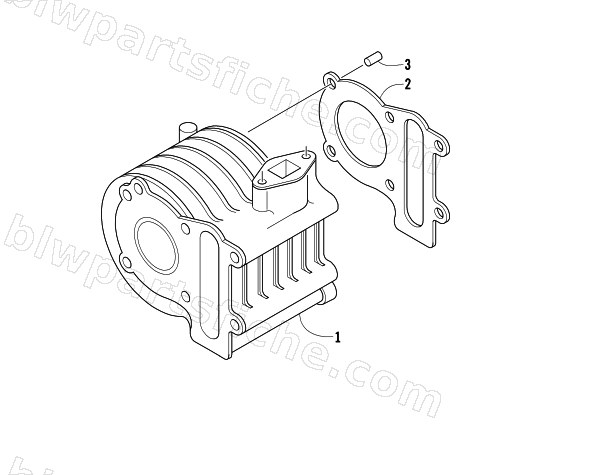

2004 Arctic Cat 90 Y-12 YOUTH 4-STROKE — CYLINDER ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-672 | CYLINDER | 1 | $216.95 | |
| 2 | 3301-673 | CYLINDER GASKET | 1 | $5.95 | |
| 3 | 3301-635 | DOWEL PIN | 1 | $2.95 |
