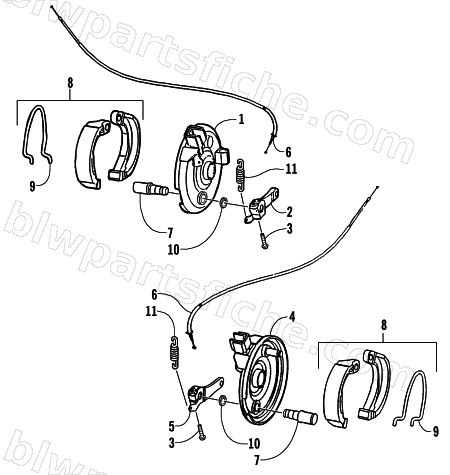

FRONT BRAKE ASSEMBLY
2004 90 Y-12 YOUTH 2-STROKE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-196 | FRONT LEFT BRAKE PANEL | 1 | $56.95 | |
| 2 | 3301-203 | FRONT LEFT BRAKE ARM | 1 | $20.63 | |
| 3 | 3301-384 | HEX WASHER FACE BOLT | 1 | $1.37 | |
| 4 | 3301-197 | FRONT RIGHT BRAKE PANEL | 1 | $56.95 | |
| 5 | 3301-202 | FRONT RIGHT BRAKE ARM | 1 | $20.95 | |
| 6 | 3301-205 | FRONT BRAKE CABLE | 1 | $35.95 | |
| 7 | 3301-201 | FRONT BRAKE CAM SHAFT | 1 | $24.95 | |
| 8 | 3301-199 | FRONT BRAKE SHOE COMP | 1 | $48.95 | |
| 9 | 3301-200 | STRAIN SPRING | 1 | $2.95 | |
| 10 | 3301-298 | O- RING | 1 | $1.95 | |
| 11 | 3301-204 | RETURN SPRING | 1 | $2.95 |
