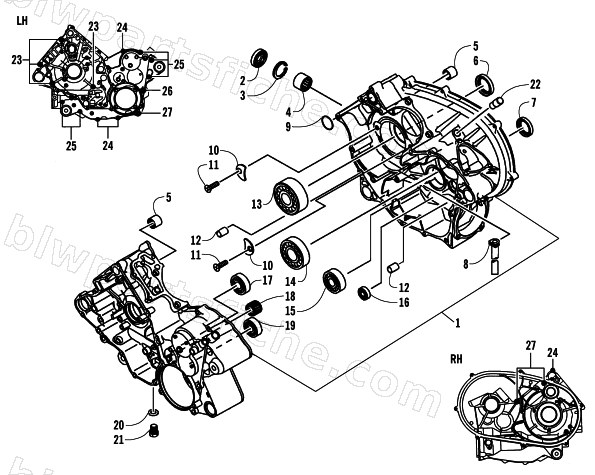

CRANKCASE ASSEMBLY
2004 650 V-2 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-444 | SET-CRANKCASE | 1 | $1,969.95 | |
| 2 | 3201-327 | SEAL-OIL | 1 | $25.95 | |
| 3 | 3201-213 | CIRCLIP-TYPE-C,37MM | 1 | $5.95 | |
| 4 | 3201-455 | BEARING-NEEDLE | 1 | $37.95 | |
| 5 | 3201-315 | BEARING-NEEDLE,TA202715ZE | 1 | $29.95 | |
| 6 | 3201-324 | SEAL-OIL,TC35508 | 1 | $20.95 | |
| 7 | 3201-328 | SEAL-OIL | 1 | $25.95 | |
| 8 | 3201-396 | TUBE,OIL RETURN | 1 | $20.95 | |
| 9 | 3201-332 | RING-O,25.7X2.4 | 1 | $6.95 | |
| 10 | 3201-157 | PLATE-POSITION | 1 | $20.95 | |
| 11 | 3201-193 | SCREW-CSK-CROS,6X16 | 1 | $1.95 | |
| 12 | 3201-305 | PIN | 1 | $4.95 | |
| 13 | 3201-308 | BEARING-BALL,5208X2-A-ECG45 | 1 | $158.95 | |
| 14 | 3201-309 | BEARING-BALL,6306SH2 | 1 | $52.95 | |
| 15 | 3201-252 | BEARING-BALL,#6304 | 1 | $25.95 | |
| 16 | 3201-250 | BEARING-BALL | 1 | $22.95 | |
| 17 | 3201-312 | BEARING-BALL | 1 | $29.95 | |
| 18 | 3201-316 | BEARING-NEEDLE | 1 | $32.95 | |
| 19 | 3201-251 | BEARING-BALL,#6004 | 1 | $22.95 | |
| 20 | 3201-349 | GASKET,12X22X2,DRAIN PLUG | 1 | $1.95 | |
| 21 | 3201-352 | PLUG,OIL DRAIN,12X15 | 1 | $5.95 | |
| 22 | 3201-165 | FITTING,BREATHER | 1 | $29.95 | |
| 23 | 3201-155 | BOLT-FLANGED-SMALL | 1 | $4.95 | |
| 24 | 3201-147 | BOLT-FLANGED-SMALL | 1 | $4.95 | |
| 25 | 3201-149 | BOLT-FLANGED-SMALL | 1 | $9.95 | |
| 26 | 3201-374 | BOLT,8MM | 1 | $10.95 | |
| 27 | 3201-153 | BOLT-FLANGED-SMALL | 1 | $10.95 |
