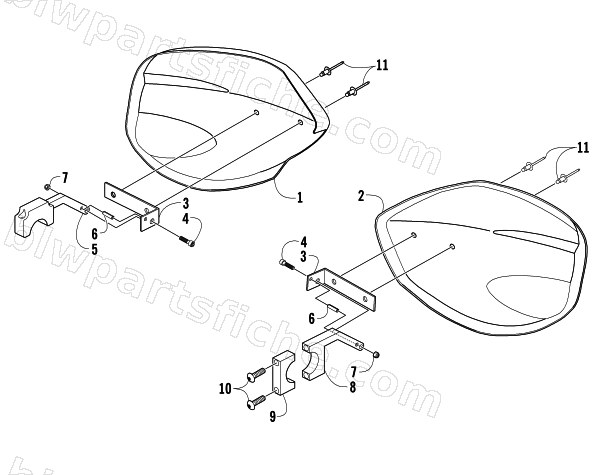

2004 Arctic Cat 650 V-2 4X4 FIS SE — HAND GUARD ASSEMBLY
2004 650 V-2 4X4 FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0436-614 | GUARDS,HAND-LIME | 1 | $58.95 | |
| 3 | 0436-610 | KIT,HAND GUARD HARDWARE | 1 | $37.95 | |
| 4 | 0423-504 | SCREW,CAP-HSH M6X1.0X25 CL10 | 1 | $1.78 | |
| 6 | 8070-218 | PIN,SPRING-1/8 X 5/8 SLOTTED | 1 | $1.50 | |
| 7 | 8422-601 | NUT,HEX-THK NYL M6X1.0 CL8 Z&C | 1 | $1.78 | |
| 10 | 0423-503 | SCREW,CAP-TSBH M6X1.0X30 RIE BLK | 1 | $2.61 | |
| 11 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
