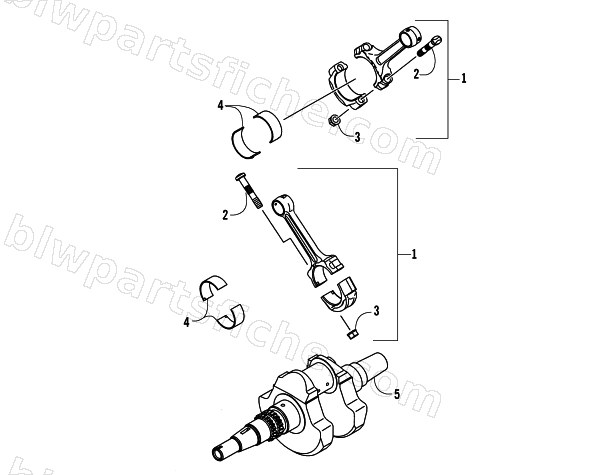

2004 Arctic Cat 650 V-2 4X4 FIS SE — CRANKSHAFT ASSEMBLY
2004 650 V-2 4X4 FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-128 | ROD-ASSY-CONNECTING | 1 | $255.95 | |
| 2 | 3201-263 | BOLT,CONNECTING ROD | 1 | $16.95 | |
| 3 | 3201-271 | NUT,FLANGED,8MM | 1 | $12.95 | |
| 4 | 3201-293 | BUSHING,CONNECTING ROD,GREEN | 1 | $16.95 | |
| 4 | 3201-294 | BUSHING,CONNECTING ROD,YELLOW | 1 | $16.95 | |
| 4 | 3201-295 | BUSHING,CONNECTING ROD,BROWNE | 1 | $16.95 | |
| 5 | 3201-454 | CRANKSHAFT-COMP | 1 | $957.95 |
