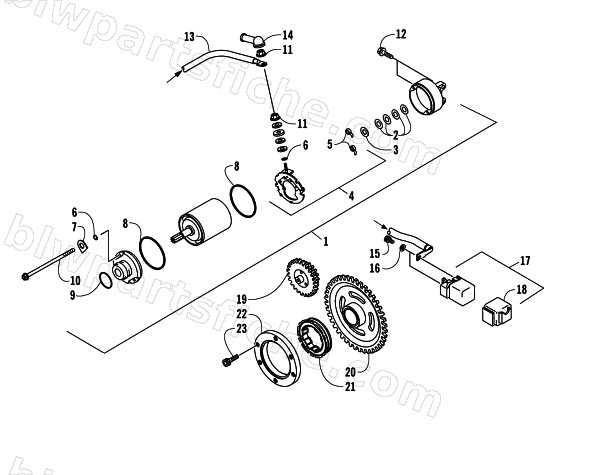

STARTER MOTOR
2004 650 V-2 4X4 FIS SE NA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-189 | STARTER-ELECTRIC | 1 | $972.95 | |
| 2 | 3201-186 | WASHER,9.1X18X0.2 | 1 | $9.59 | |
| 3 | 3201-277 | WASHER,9.1X18X0.8 | 1 | $10.95 | |
| 4 | 3201-187 | BRUSH,CARBON | 1 | $110.95 | |
| 5 | 3201-188 | SPRING-BRUSH | 1 | $16.95 | |
| 6 | 3201-338 | RING-O,4.5X2.0 | 1 | $5.95 | |
| 7 | 3201-278 | WASHER,LOCK,T=2.0 | 1 | $10.95 | |
| 8 | 3201-339 | RING-O,STARTER MOTOR | 1 | $16.95 | |
| 9 | 3201-335 | RING-O | 1 | $16.95 | |
| 10 | 3201-367 | BOLT | 1 | $16.49 | |
| 11 | 3201-274 | NUT,STARTER MOTOR | 1 | $6.95 | |
| 12 | 3201-146 | BOLT-FLANGED-SMALL | 1 | $6.95 | |
| 13 | 3201-195 | WIRE-LEAD | 1 | $91.95 | |
| 14 | 3201-185 | GROMMET,STARTER TERMINAL | 1 | $13.95 | |
| 15 | 3201-097 | BOLT-SOCKET | 1 | $6.95 | |
| 16 | 3201-210 | WASHER-SPRING,5MM,BLACK | 1 | $1.95 | |
| 17 | 3201-197 | SWITCH,MAGNETIC | 1 | $236.95 | |
| 18 | 3201-110 | HOLDER | 1 | $14.95 | |
| 19 | 3201-446 | LIMITER,STARTER | 1 | $416.95 | |
| 20 | 3201-174 | GEAR,STARTER | 1 | $151.95 | |
| 21 | 3201-122 | CLUTCH-ONEWAY | 1 | $164.95 | |
| 22 | 3201-321 | RACE,ONEWAY CLUTCH | 1 | $197.95 | |
| 23 | 3201-096 | BOLT-SOCKET | 1 | $9.95 |
