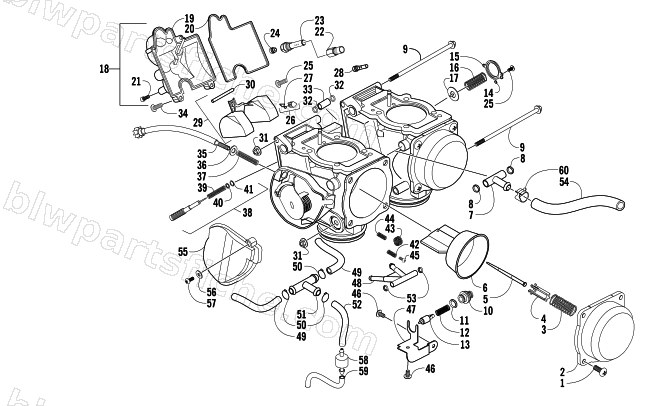

CARBURETOR
2004 650 V-2 4X4 FIS MRP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0470-497 | CARB SET, KEIHIN (TWIN 32mm) | 1 | $1,372.95 | |
| 1 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 2 | 5507-118 | TOP | 1 | $58.95 | |
| 3 | 5507-119 | SPRING | 1 | $10.97 | |
| 4 | 5507-121 | SPRING SEAT | 1 | $5.37 | |
| 5 | 5507-122 | JET NEEDLE | 1 | $26.95 | |
| 6 | 5507-120 | VACUUM PISTON | 1 | $156.95 | |
| 7 | 5507-153 | T-JOINT (AV) | 1 | $20.63 | |
| 8 | 5507-154 | O-RING | 1 | $10.97 | |
| 9 | 5507-144 | FLANGE BOLT | 1 | $20.63 | |
| 10 | 5507-136 | CAP | 1 | $30.95 | |
| 11 | 5507-137 | O-RING | 1 | $5.78 | |
| 12 | 5507-135 | SPRING | 1 | $8.21 | |
| 13 | 5507-134 | STARTER VALVE | 1 | $42.95 | |
| 14 | 5507-034 | U RING | 1 | $3.02 | |
| 15 | 5507-140 | PUMP HOUSING | 1 | $42.95 | |
| 16 | 5507-139 | SPRING | 1 | $6.20 | |
| 17 | 5507-138 | DIAPHRAGM ASSY. | 1 | $64.95 | |
| 18 | 5507-165 | FLOAT CHAMBER ASSY. | 1 | $260.95 | |
| 20 | 5507-172 | O-RING, FLOAT CHAMBER | 1 | $26.95 | |
| 21 | 5507-133 | DRAIN SCREW | 1 | $10.97 | |
| 22 | 5507-123 | JET HOLDER | 1 | $33.95 | |
| 23 | 5507-124 | NEEDLE JET HOLDER | 1 | $30.95 | |
| 24 | 5507-205 | MAIN JET-122(PROWLER) | 1 | $13.73 | |
| 24 | 5507-126 | MAIN JET (115) | 1 | $13.73 | |
| 24 | 5507-166 | MAIN JET (110) | 1 | $13.73 | |
| 24 | 5507-167 | MAIN JET (105) | 1 | $13.73 | |
| 25 | 5507-002 | SCREW, TOP COVER | 1 | $0.40 | |
| 26 | 5507-038 | FLOAT VALVE SET | 1 | $33.95 | |
| 28 | 5507-127 | SLOW JET | 1 | $20.63 | |
| 29 | 5507-163 | FLOAT SET | 1 | $66.95 | |
| 31 | 5507-145 | HEX NUT | 1 | $3.44 | |
| 32 | 5507-152 | O-RING (F) | 1 | $3.71 | |
| 33 | 5507-151 | JOINT (F) | 1 | $26.95 | |
| 34 | 5507-017 | SCREW | 1 | $7.30 | |
| 35 | 5507-141 | STOP SCREW COMP. | 1 | $144.95 | |
| 36 | 5507-142 | WASHER | 1 | $0.95 | |
| 37 | 5507-143 | SPRING | 1 | $10.97 | |
| 38 | 5507-164 | PILOT SCREW SET | 1 | $20.63 | |
| 42 | 5507-148 | SPRING | 1 | $3.95 | |
| 43 | 5507-149 | SPRING | 1 | $6.95 | |
| 44 | 5507-147 | SPRING | 1 | $17.95 | |
| 45 | 5507-146 | STOP SCREW | 1 | $4.82 | |
| 46 | 5507-106 | SCREW | 1 | $2.06 | |
| 47 | 5507-150 | STAY PLATE | 1 | $35.95 | |
| 48 | 5507-155 | T-JOINT (I) | 1 | $58.95 | |
| 49 | 5507-159 | RUBBER PIPE | 1 | $3.95 | |
| 50 | 5507-161 | R/B 3304-474 | 1 | $1.95 | |
| 51 | 5507-158 | T-JOINT | 1 | $10.95 | |
| 52 | 5507-160 | RUBBER PIPE | 1 | $10.95 | |
| 53 | 5507-156 | O-RING | 1 | $10.97 | |
| 54 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 55 | 3201-053 | COVER | 1 | $16.95 | |
| 56 | 3201-056 | WASHER | 1 | $6.95 | |
| 57 | 3201-054 | SCREW,PAN-M4X8 | 1 | $0.73 | |
| 58 | 3201-055 | VALVE,ASSY | 1 | $29.95 | |
| 59 | 3201-057 | TUBE | 1 | $6.95 | |
| 60 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 |
