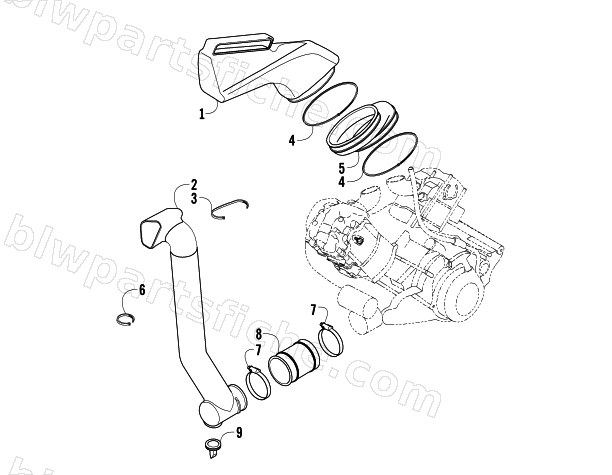

2004 Arctic Cat 650 V-2 4X4 FIS MRP NA — CASE/BELT COOLING ASSEMBLY
2004 650 V-2 4X4 FIS MRP NA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0413-081 | DUCT,AIR IN | 1 | $56.95 | |
| 3 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 4 | 3201-038 | CLAMP | 1 | $20.95 | |
| 5 | 0413-083 | BOOT,AIR OUT | 1 | $29.95 | |
| 6 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 7 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 8 | 0413-085 | BOOT,AIR IN | 1 | $30.95 | |
| 9 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 |
