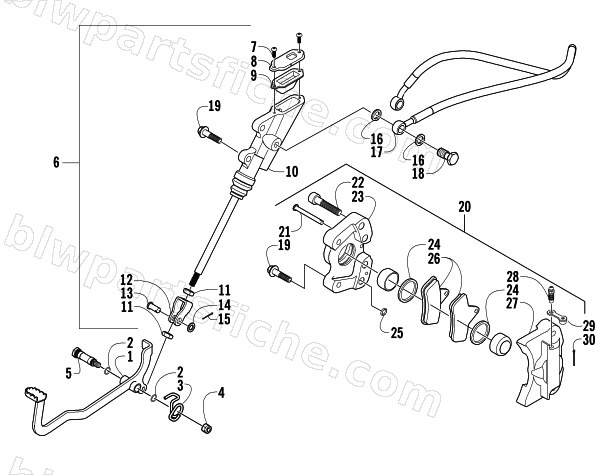

AUXILIARY BRAKE ASSEMBLY
2004 650 V-2 4X4 FIS CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-594 | LEVER,BRAKE-BLACK | 1 | $74.95 | |
| 2 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 3 | 0502-395 | SPRING, RETURN - BLACK | 1 | $37.95 | |
| 4 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 0402-872 | AXLE-FOOTBRAKE | 1 | $37.95 | |
| 6 | 0437-053 | KIT,MASTER CYLINDER ADAPTER-FIS | 1 | $410.95 | |
| 8 | 0402-588 | COVER, RESERVOIR,(OL) | 1 | $30.95 | |
| 9 | 0402-591 | BLADDER, RESERVOIR | 1 | $16.95 | |
| 11 | 0402-592 | NUT, JAM,M8 X 1.25 | 1 | $0.95 | |
| 14 | 0402-583 | WASHER,5/16 X.063(OL) | 1 | $0.55 | |
| 15 | 0402-584 | PIN, COTTER 1/16 X3/4(OL) | 1 | $1.09 | |
| 16 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 17 | 1402-200 | HOSE, BRAKE-REAR | 1 | $71.95 | |
| 18 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 19 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 20 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 21 | 0402-495 | PIN,HYD BRAKE CALIPER-(OL) | 1 | $3.57 | |
| 22 | 0402-492 | SCREW, CAP-HSH-HYD BRAKE(OL) | 1 | $1.50 | |
| 24 | 0402-980 | O RING-SQUARE | 1 | $17.87 | |
| 25 | 0402-490 | O-RING, HYD BRAKE CALIPER | 1 | $1.78 | |
| 26 | 0402-882 | PAD, BRAKE | 1 | $29.95 | |
| 28 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 30 | 0423-495 | PIN, COTTER -1/16" X 1/2" | 1 | $0.65 |
