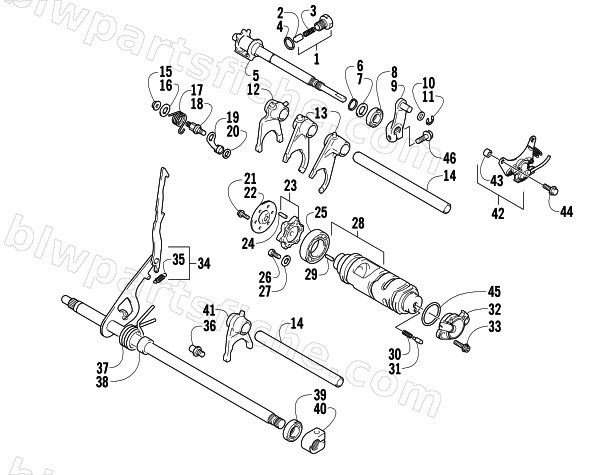

2004 Arctic Cat 500 MANUAL TRANSMISSION 4X4 FIS MRP — GEAR SHIFTING ASSEMBLY
2004 500 MANUAL TRANSMISSION 4X4 FIS MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-164 | STOPPER,REVERSE | 1 | $33.95 | |
| 2 | 3446-117 | STOPPER, REVERSE SHIFT CAM | 1 | $20.95 | |
| 3 | 3402-088 | SPRING,COMPRESSION,M5 | 1 | $9.59 | |
| 4 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 5 | 3446-349 | CAM, REVERSE SHIFT | 1 | $104.95 | |
| 6 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 7 | 3423-357 | WASHER,REVERSE SHIFT CAM-M12X20 | 1 | $1.78 | |
| 8 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 9 | 3402-434 | ARM, COMPRESSION,-SELECT | 1 | $79.95 | |
| 10 | 3423-204 | WASHER | 1 | $1.95 | |
| 11 | 3423-860 | E RING | 1 | $3.30 | |
| 12 | 3446-040 | FORK, GEAR SHIFT, REVERSE | 1 | $140.95 | |
| 13 | 3446-347 | FORK, GEAR SHIFT, NO.2 | 1 | $140.95 | |
| 14 | 3446-052 | SHAFT, GEAR SHIFT FORK | 1 | $56.95 | |
| 15 | 3007-373 | NUT | 1 | $3.16 | |
| 16 | 3423-142 | WASHER, CAM STOPPER ARM SUPPORT-M6X18 | 1 | $2.06 | |
| 17 | 3423-551 | SPRING, GEAR SHIFT CAM | 1 | $12.35 | |
| 18 | 3446-048 | SUPPORT, CAM STOPPER ARM | 1 | $32.95 | |
| 19 | 3446-043 | STOPPER, GEAR SHIFT CAM | 1 | $30.95 | |
| 20 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 21 | 3423-884 | BOLT,CTUTCH RELEASE ARM-M6X20 | 1 | $2.61 | |
| 22 | 3446-309 | GUIDE, GEAR SHIFT | 1 | $20.63 | |
| 23 | 3446-049 | PLATE, GEAR SHIFT CAM | 1 | $67.95 | |
| 24 | 3423-045 | PIN ,M4X13.8 | 1 | $3.30 | |
| 25 | 3402-051 | BEARING,M25 | 1 | $62.95 | |
| 26 | 3423-370 | SCREW,6MM | 1 | $2.61 | |
| 27 | 3423-135 | RETAINER, CNTR SHAFT BRG-M6X16 | 1 | $5.92 | |
| 28 | 3446-348 | CAM, GEAR SHIFT | 1 | $263.95 | |
| 29 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 30 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 | |
| 31 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 32 | 3402-816 | BASE ASSY, GEAR SHIFT TERM | 1 | $216.95 | |
| 33 | 3423-418 | BOLT, BASE ASSY | 1 | $3.30 | |
| 34 | 3446-410 | SHAFT,GEAR SHIFT | 1 | $181.95 | |
| 35 | 3402-093 | SPRING,PULL,M6 | 1 | $12.35 | |
| 36 | 3446-056 | STOPPER, GEAR SHIFT ARM | 1 | $12.35 | |
| 37 | 3402-094 | SPRING,TORSION,M26 | 1 | $12.35 | |
| 38 | 3446-054 | SPACER, GEAR SHIFT SHAFT | 1 | $20.63 | |
| 39 | 3402-068 | OIL SEAL,M13X22X6 | 1 | $17.87 | |
| 40 | 3402-815 | BOSS, GEAR SHIFT LEVER | 1 | $30.95 | |
| 41 | 3446-039 | FORK, GEAR SHIFT, NO.3 | 1 | $140.95 | |
| 42 | 3409-020 | SWITCH,REVERSE | 1 | $196.95 | |
| 43 | 3423-553 | SPACER,STEEL-6.5x13x10 | 1 | $23.39 | |
| 44 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 45 | 3423-059 | O RING, ID:25.7, DD:2.4 | 1 | $17.95 | |
| 46 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 |
