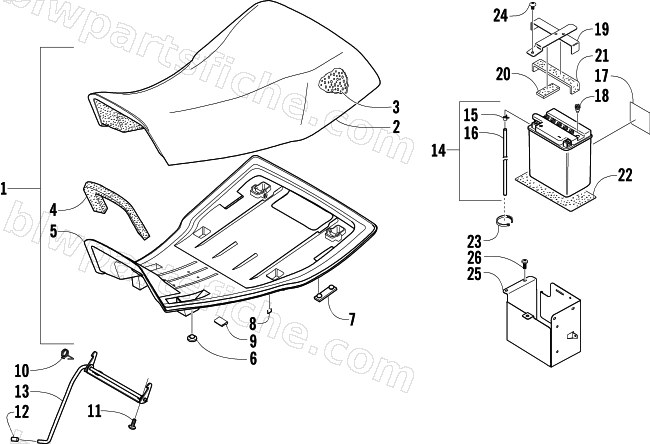

2004 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 TBX — SEAT AND BATTERY ASSEMBLIES
2004 500 AUTOMATIC TRANSMISSION 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-613 | SEAT, TBOX-ASSY | 1 | $781.95 | |
| 2 | 0506-556 | COVER, SEAT | 1 | $129.95 | |
| 3 | 0506-555 | FOAM,SEAT (68-72ILD).48@3.3 | 1 | $100.95 | |
| 4 | 1406-060 | FOAM,SOUND-SEAT | 1 | $11.95 | |
| 5 | 0406-925 | BASE,SEAT | 1 | $457.95 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 8 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 9 | 0406-930 | SEAT LATCH | 1 | $156.95 | |
| 10 | 1406-112 | SPRING,SEAT LATCH | 1 | $5.51 | |
| 11 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 1406-185 | LATCH,SEAT | 1 | $79.95 | |
| 14 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 15 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 16 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 17 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 18 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 19 | 0506-877 | STRAP,BATTERY-W/PAD | 1 | $4.95 | |
| 20 | 1406-265 | PAD,FOAM-PSA BACK (1X2.25) | 1 | $3.16 | |
| 21 | 1406-266 | PAD,FOAM-PSA BACK (1X4.25) | 1 | $3.95 | |
| 22 | 1406-219 | PAD,BATTERY-LOWER | 1 | $13.73 | |
| 23 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 24 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 25 | 1506-365 | BOX,BATTERY-BLACK | 1 | $95.95 | |
| 26 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 |
