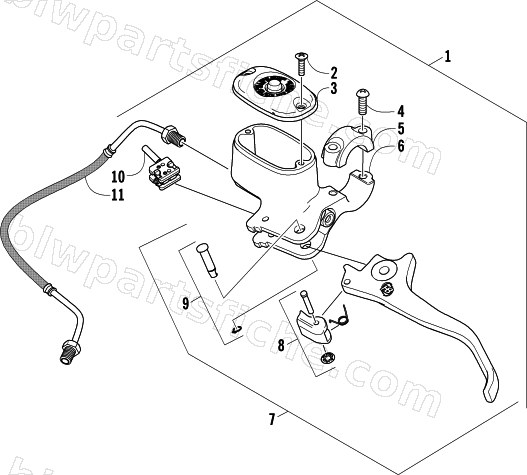

2004 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 TBX — HYDRAULIC HAND BRAKE ASSEMBLY
2004 500 AUTOMATIC TRANSMISSION 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-765 | KIT,MASTER CYLINDER FULL ASSY(BLK FLARE) | 1 | $501.95 | |
| 2 | 0502-566 | KIT, RESERVOIR COVER SCREWS | 1 | $6.47 | |
| 3 | 0502-565 | KIT, RESERVOIR COVER SUB-ASSEMBLY | 1 | $79.95 | |
| 4 | 0502-568 | KIT, CLAMP SCREWS | 1 | $20.63 | |
| 5 | 0502-567 | KIT, MASTER CYLINDER CLAMP | 1 | $43.95 | |
| 6 | 1502-766 | KIT,REBUILD MASTER CYLINDER(BLK FLARE) | 1 | $199.95 | |
| 7 | 0502-634 | KIT,LEVER AND PARK LEVER SUB-ASSEMBLY | 1 | $118.95 | |
| 8 | 1502-905 | KIT,PARK LEVER SUB-ASSY | 1 | $20.63 | |
| 9 | 0502-580 | KIT,SNAP RING | 1 | $20.63 | |
| 10 | 0502-564 | KIT, BRAKE LIGHT SWITCH | 1 | $58.95 | |
| 11 | 0402-962 | HOSE,BRAKE-MASTER CYL | 1 | $79.95 |
