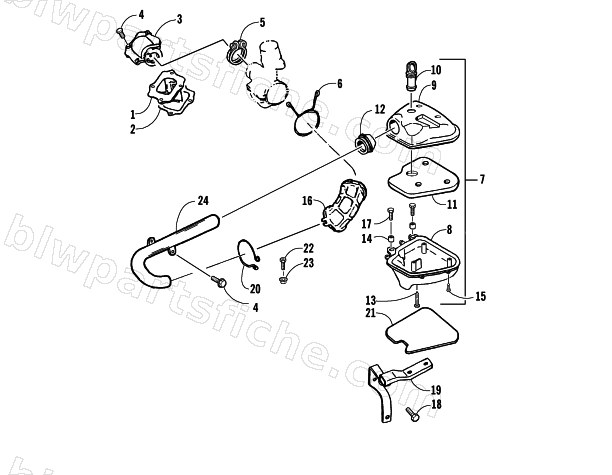

2004 Arctic Cat 50 Y-6 YOUTH — REED VALVE AND AIR CLEANER ASSEMBLY
2004 50 Y-6 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-030 | REED VALVE ASS'Y | 1 | $40.95 | |
| 2 | 3301-061 | REED VALVE GASKET | 1 | $1.95 | |
| 3 | 3301-060 | INTAKE MANIFOLD(3XG) | 1 | $33.95 | |
| 4 | 3301-389 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 5 | 3301-031 | INTAKE MANIFOLD HOSE CLAMP | 1 | $6.95 | |
| 6 | 3301-375 | CLIP | 1 | $1.95 | |
| 9 | 3301-065 | AIR CLEANER COVER | 1 | $14.95 | |
| 10 | 3301-552 | GUIDE PIPE | 1 | $16.49 | |
| 11 | 3301-063 | AIR CLEANER ELEMENT | 1 | $25.95 | |
| 12 | 3301-588 | AIR CLEANER CONNECTION | 1 | $5.37 | |
| 13 | 3301-323 | TAPPING SCREW TRUSS HEAD PHILLIPS | 1 | $1.95 | |
| 14 | 3301-432 | GROMMET | 1 | $4.95 | |
| 15 | 3301-471 | TAPPING SCREW TRUSS HEAD PHILLIPS | 1 | $0.85 | |
| 16 | 3301-520 | AIR CLEANER JOINT | 1 | $25.95 | |
| 17 | 3301-307 | HEX BOLT | 1 | $1.95 | |
| 18 | 3301-397 | BOLT FLANG | 1 | $1.95 | |
| 19 | 3301-072 | AIR CLEANER BRACKET | 1 | $29.95 | |
| 20 | 3301-376 | CLIP | 1 | $4.95 | |
| 21 | 3301-068 | AIR CLEANER ISOLATION GASKET | 1 | $20.95 | |
| 22 | 3301-309 | HEX HEAD PHILLIPS BOLT | 1 | $1.95 | |
| 23 | 3301-326 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 24 | 3301-554 | AIR DUCT | 1 | $50.95 |
