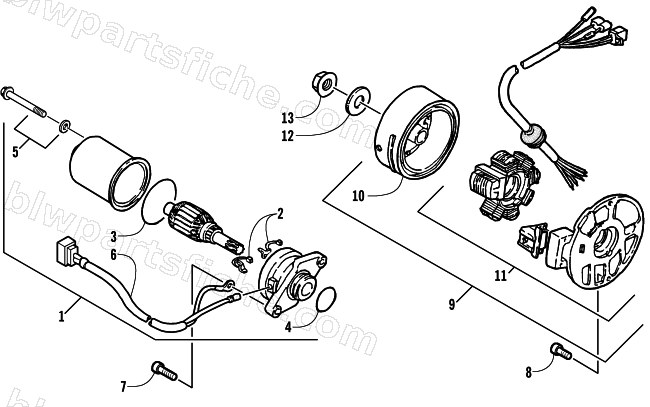

MAGNETO AND STARTER MOTOR ASSEMBLY
2004 50 Y-6 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-142 | STARTING MOTOR ASS'Y | 1 | $279.95 | |
| 2 | 3301-572 | BRUSH SET | 1 | $35.95 | |
| 3 | 3301-303 | O- RING | 1 | $5.37 | |
| 4 | 3301-301 | O- RING | 1 | $5.92 | |
| 5 | 3301-583 | BOLT SET | 1 | $2.95 | |
| 6 | 3301-144 | CORD COMP. | 1 | $48.95 | |
| 7 | 3301-289 | HEX SOCKET BOLT | 1 | $2.95 | |
| 8 | 3301-288 | HEX SOCKET BOLT | 1 | $2.95 | |
| 9 | 3301-139 | GENERATOR ASS'Y | 1 | $369.95 | |
| 10 | 3301-140 | GENERATOR FLYWHEEL | 1 | $143.95 | |
| 11 | 3301-141 | STATOR COMP. | 1 | $197.95 | |
| 12 | 3301-345 | PLAIN WASHER | 1 | $1.95 | |
| 13 | 3301-331 | HEX FLANGE NUT WITH SERRATION | 1 | $2.95 |
