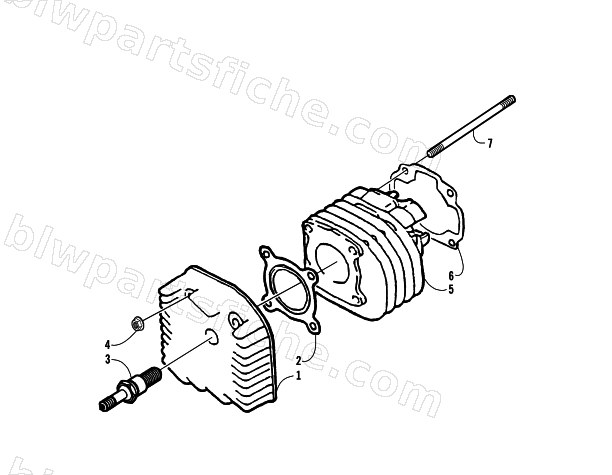

2004 Arctic Cat 50 Y-6 YOUTH — CYLINDER AND HEAD ASSEMBLY
2004 50 Y-6 YOUTH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-534 | CYLINDER HEAD | 1 | $64.95 | |
| 2 | 3301-535 | CYLINDER HEAD GASKET | 1 | $4.95 | |
| 3 | 0217-716 | SPARK PLUG, NGK-BPR7HS | 1 | $4.54 | |
| 4 | 3301-329 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 5 | 3301-532 | CYLINDER | 1 | $190.95 | |
| 6 | 3301-533 | CYLINDER GASKET | 1 | $3.95 | |
| 7 | 3301-523 | STUD BOLT | 1 | $5.95 |
