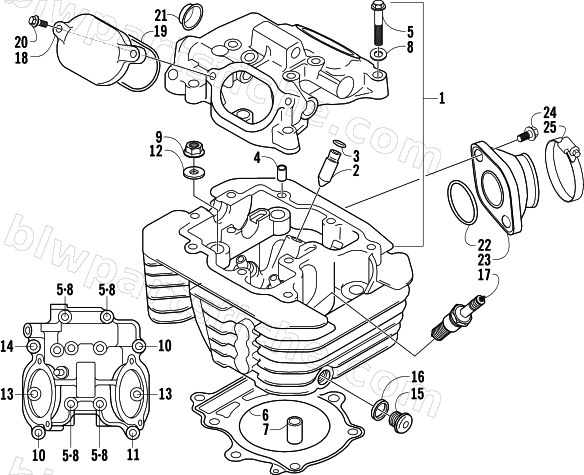

CYLINDER HEAD ASSEMBLY
2004 400 MANUAL TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3402-048 | PLUG,16MM | 1 | $10.97 | |
| 1 | 3403-237 | HEAD ASSY.,CYLINDER | 1 | $1,285.95 | |
| 2 | 3402-099 | GUIDE, VALVE | 1 | $52.95 | |
| 3 | 3423-068 | CIRCLIP,M10 | 1 | $3.30 | |
| 4 | 3423-043 | PIN,ALIGNMENT,8MM | 1 | $9.59 | |
| 5 | 3423-006 | BOLT, 6X55 | 1 | $3.02 | |
| 6 | 3402-577 | GASKET, CYLINDER HEAD | 1 | $82.95 | |
| 7 | 3423-449 | PIN | 1 | $5.92 | |
| 8 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 9 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 10 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 11 | 3423-429 | BOLT, M6 X 39 | 1 | $3.02 | |
| 12 | 3423-890 | WASHER,10.5X22X23 | 1 | $3.02 | |
| 13 | 3007-380 | BOLT | 1 | $3.16 | |
| 14 | 3007-395 | BOLT | 1 | $3.44 | |
| 15 | 3423-453 | PLUG | 1 | $20.63 | |
| 16 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 17 | 0217-708 | SPARK PLUG, NGK-CR7E | 1 | $10.97 | |
| 18 | 3402-100 | CAP, INSPECTION | 1 | $48.95 | |
| 19 | 3402-101 | O RING, INSPECTION CAP | 1 | $12.35 | |
| 20 | 3007-409 | BOLT | 1 | $3.16 | |
| 21 | 3402-035 | PLUG, CYLINDER HEAD,25MM | 1 | $17.87 | |
| 22 | 3423-353 | O- RING(D:2.4,ID:39.7) | 1 | $10.97 | |
| 24 | 3004-893 | BOLT, 6 X 25 | 1 | $16.49 | |
| 25 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 |
