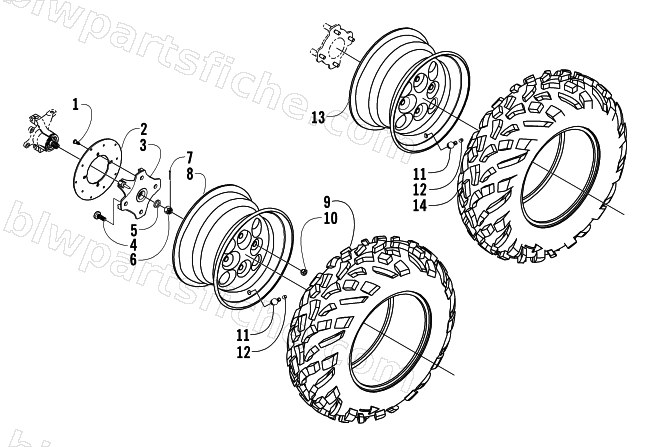

2004 Arctic Cat 400 MANUAL TRANSMISSION 4X4 MRP — WHEEL AND TIRE ASSEMBLY
2004 400 MANUAL TRANSMISSION 4X4 MRP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 0502-421 | HUB - ASSY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0402-181 | SEAL,HUB | 1 | $1.64 | |
| 6 | 0423-394 | NUT,CASTLE FLANGE-M18X1.5 Z&Y | 1 | $13.73 | |
| 7 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 8 | 0402-856 | WHEEL ASSY-GRAY 12" | 1 | $114.95 | |
| 9 | 0402-890 | TIRE,25X8-12 - DUNLOP KT123A | 1 | $179.95 | |
| 10 | 0423-408 | NUT,LUG-M10 | 1 | $1.37 | |
| 11 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 13 | 0402-989 | WHEEL,GRAY-12x8.0 | 1 | $109.95 | |
| 14 | 0402-887 | TIRE,25X10-12 - DUNLOP KT127B | 1 | $197.95 |
