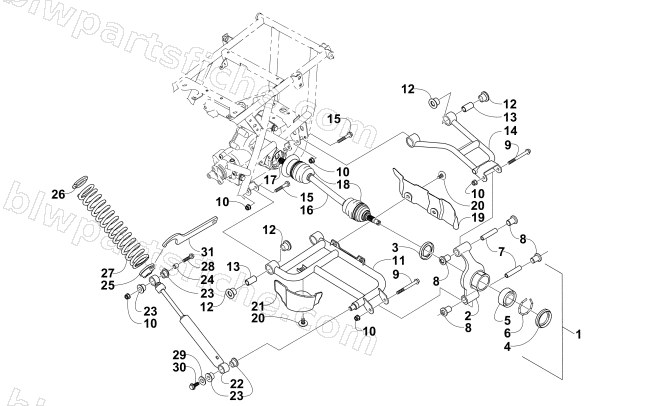

2004 Arctic Cat 400 MANUAL TRANSMISSION 2X4 FIS — REAR SUSPENSION ASSEMBLY (VIN Ending in 225000 and Up)
2004 400 MANUAL TRANSMISSION 2X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-382 | KNUCKLE,REAR RH-ASSY | 1 | $272.95 | |
| 1 | 0504-380 | KNUCKLE,REAR LH-ASSY | 1 | $272.95 | |
| 2 | 0504-297 | R/B 0504-382 | 1 | $135.95 | |
| 2 | 0504-225 | R/B 0504-380 | 1 | $110.95 | |
| 3 | 0402-069 | SEAL,40MMX58MMX7MM-3 LIP | 1 | $5.95 | |
| 4 | 0402-089 | SEAL,40MMX55MMX6MM-DBL LIP(R/B 2402-611) | 1 | $4.95 | |
| 5 | 0402-275 | BEARING, WHEEL | 1 | $58.95 | |
| 6 | 0423-034 | CLIP,BEARING | 1 | $5.51 | |
| 7 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 7 | 0403-038 | R/B 0403-437 | 1 | $8.95 | |
| 8 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 8 | 0403-032 | R/B 0403-206 | 1 | $3.95 | |
| 9 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 0504-438 | A-ARM,REAR LOWER RH ASSEMBLY BLACK | 1 | $158.95 | |
| 11 | 0504-573 | A-ARM,REAR LOWER-LH-ASSY (BLACK) | 1 | $227.95 | |
| 12 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 12 | 0403-115 | R/B 0403-208 | 1 | $3.95 | |
| 13 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 13 | 0403-114 | R/B 0403-214 | 1 | $5.95 | |
| 14 | 0504-318 | A-ARM,REAR UPPER RH-ASSY | 1 | $148.95 | |
| 14 | 0504-583 | A-ARM,REAR UPPER-LH-ASSY (BLACK) | 1 | $148.95 | |
| 15 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 16 | 1502-442 | HALFSHAFT | 1 | $454.95 | |
| 17 | 1441-816 | CLIP,RETAINING-IB (22X21) | 1 | $0.95 | |
| 17 | 0441-400 | R/B 1441-816 | 1 | $1.95 | |
| 18 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 18 | 0436-276 | R/B 1436-207 | 1 | $52.95 | |
| 19 | 1406-068 | GUARD,BOOT-REAR-RH (BLACK) | 1 | $37.95 | |
| 19 | 1406-069 | GUARD,BOOT-REAR-LH (BLACK) | 1 | $37.95 | |
| 20 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 21 | 1406-071 | GUARD,BOOT-REAR-RH (#2) | 1 | $94.95 | |
| 21 | 1406-072 | GUARD,BOOT-REAR-LH (#2) | 1 | $82.95 | |
| 22 | 0404-072 | SHOCK, REAR-ASSY (UB) | 1 | $114.95 | |
| 23 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 24 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 25 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 26 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 27 | 0404-065 | SPRING,COIL-BLACK | 1 | $156.95 | |
| 27 | 0404-074 | SPRING,COIL-PLATINUM (UB) | 1 | $156.95 | |
| 28 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 29 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 30 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 31 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
